Apollo Auto Architecture Research: Group 13

Group Members:

• Inika Chikarmane
• Rebecca De Venezia
• Rebecca Henry
• Ensor Moriarty
• Michaelah Wales
• Hannah Weider

Assignment 3

Architecture Enhancement

Presentation

Click here to view presentation.

Report

ABSTRACT

This report discusses how the implementation of a fingerprint scanner as a method of two factor authentication is a feasible and beneficial proposition. It would consist of a scanner on the driver’s door handle, and the ignition, which can be set up and authorized in an app. It would be a secure and easy to use feature that allows the user to customize their driving experience and feel safe from theft. The feature would require users to have their key fob with them to ensure the security. The implementation could pose a few risks to Apollo Auto’s non-functional requirements, specifically delayed production, increased testing, and an increased budget. This being said, the security and user experience would greatly benefit. The best route for implementation would be to use a capacitive fingerprint scanner for its high security. Introduction of two components: “Unlocking FPS” and “Ignition FPS” would be crucial, and they would allow for the pub-sub style to be maintained. These components would be in charge of collecting, analyzing, and responding to the fingerprints, either to unlock the car or start it. Additionally, they would communicate with the app to store and retrieve information. These components would strengthen and create dependencies affecting the open software platform and the hardware platform, and maintain the high level architecture style. The most common and important cases: a user trying to get into and start their car, and a theft, are clearly depicted with two use case diagrams. They clearly show how the feature will work. To ensure that this feature is well implemented and meets the expectations, testing will need to be thoroughly conducted. The door, ignition, preference adaptation, and the app are main aspects that should be tested. Overall, this report will analyze the benefits and the development's foundation in depth.

INTRODUCTION

The purpose of this report is to propose the addition of a fingerprint scanner to the Apollo Auto system. The scanner must be well discussed so its goals are realized, its impacts are understood, and its interactions are well explained. This report should provide a strong foundation for future pursuits of implementing the fingerprint scanner, and direct future research, development, and testing. The report is structured in a way such that each section builds on the previous, to ensure the reader can fully grasp the feature and see it from all perspectives. This is accomplished by starting the report with an outline of the motivations behind the proposition. The benefits of added security and improved user experience are expanded on before analyzing the addition. Possible expectations, benefits, and risks involving the customers, developers, and suppliers due to the feature are discussed. The important non-functional requirements for each stakeholder are also pointed out. It was found that everyone is affected, and the weights of the impact must be considered. After discussing the stakeholders, an SEI SAMM analysis is performed, introducing two potential realizations of the feature. This led to the conclusion that different implementations have different consequences and compromises. Then, the impact and risks this feature would have on some main non-functional requirements are considered, specifically the maintainability, security, evolvability, testability, and performance. This is then pulled together to help determine the best realization. This showed that there are high level pros and cons caused by this implementation, affecting the project’s organization and also highlighting the best realization. From here, the more technical aspects can be discussed. The required interactions and changes are broken down into an overview of the fingerprint functionality, followed by an overview of the interactions, and a discussion of the low level changes, which are supported by diagrams of the concrete architecture before and after the new feature implementation. By analyzing the interactions, it could be concluded that there is a secure fingerprint scanner technology which should successfully interact with the main components of the Apollo Auto system. To dive even deeper, the new components are analyzed, and leads us to the conclusion that this feature will introduce several new dependencies, especially involving hardware, software, and the app. Taking a step back, the high level and architectural style changes are explained. This explanation confirms that no major changes would need to be made in this regard for the feature. Then to give an example of the feature in action, two use cases are explored. The use case diagrams conclude that with the proper implementation, the scanner would be able to achieve its main goals of enhancing a user’s experience and combating theft. Finally, tying everything together, the testing of the feature is discussed, strengthening the conclusion that this feature will incur a lot of testing and there are a lot of requirements that must be met.

PROPOSED ENHANCEMENT

MOTIVATIONS

Our proposed enhancement to the Apollo Auto system is a finger scanning feature that allows drivers to add an extra layer of security to their vehicle. Two fingerprint sensors would be added; one on the door handle and one to start the ignition. These fingerprints would be authenticated by a database in the Cloud Server. Users can add their fingerprint to the vehicle’s database via an associated mobile app. This app also allows the vehicle’s users to see who is driving the car based on whose fingerprint was recently authenticated. Finally, user preferences such as location preferences, music, temperature, and seat position would be activated once their fingerprint activates the ignition. Overall, the enhancement would improve security as only pre-approved users can be authenticated to use the vehicle and provide a more unique, convenient and enjoyable driving experience.

MAJOR STAKEHOLDERS

Customers

The proposed feature would largely be used to appeal to a larger consumer base, as the feature for customizing driving preferences is a very marketable factor that appeals to personalization trends. This contrasts largely with other enhancements that are more “under the hood” and away from the user’s direct attention. Finally, customers that reside in areas with high rates of car theft such as Bakersfield, California [1] would find the extra safety features comforting. Customers also determine the financial success of Apollo Auto’s vehicles. Therefore, customers are a critical stakeholder.

Contributing Developers and other Engineers/Employees

As they will be the ones implementing the feature and integrating it into the overall system, contributing developers, engineers, and employees are a major stakeholder as well. They’re largely dependent on the NFRs we prioritize, other product specifications, the time we allocate for the projects, and even the quality of the final version of it. This makes them highly invested in the decisions that revolve around this feature. Especially since, on a larger scale as well, their career’s success depends on that of their product’s popularity

Suppliers

Especially since our feature has a prominent physical aspect to it, sourcing of the materials that go into the hardware parts of that will be integral to the success of its rollout. While recently we’ve seen the kind of impact supply-chain issues can have on the industry, the suppliers are also invested in the success of the feature to be able to assure continued business.

IMPORTANT NON-FUNCTIONAL REQUIREMENTS

Customers

For customers, security would definitely be a focal point of their attention. They would want to ensure that access is only restricted to pre-authorized members, to avoid their car (or belongings within it) being stolen.

Additionally, convenience and functionality would matter to them. This would especially be in respect to the customization of driving preferences. For example, it would be crucial that the feature was able to not confuse different user profiles’ preferences. Additionally, that there was precision with the preferences and that relevant changes were effected without too long of a wait, for the user’s convenience.

Reliability and usability also play a heavy hand in ensuring the user’s approval of the addition. The former of which is important for access to the car during emergency situations. The latter is to ensure that the use is intuitive, so people actually use it.

Contributing Developers and other Engineers/Employees

Meanwhile, developers and other such employees would focus on implementing the feature so that all functional and non-functional requirements are met, and that integration into the broader system is seamless and impactful.

In order to upkeep the standards of Apollo, it would be essential for the code to prioritize maintainability as well. This would aid in easing future feature additions, reducing the time and resources needed to develop them as well. Testability is important for the same reason. Evolvability is also key to continue to sustain the company’s innovation.

Suppliers

For suppliers, the main NFR they keep in mind is more managerial in nature. One such as delivery time is more fitting, for them to remember where in the production process they are expected to provide the hardware for the implementation of something like this so it is available for the intended customer by the expected timeline.

SEI SAMM ANALYSIS

POTENTIAL REALIZATIONS

The first potential realization is by using the fingerprint scanner as the primary method to unlock the vehicle and to trigger the ignition. This first implementation would use fingerprint scanning as a replacement for the conventional car key or key fob.

The second potential realization of this fingerprint scanner is as a multi-factor authentication (MFA) method. If the car’s key fob is stolen, the vehicle still requires a fingerprint scan to unlock, and to activate the ignition.

Fingerprints in both implementations may also be linked to user preferences. This would allow the user to select preferences such as seat adjustment, climate control, and sound system settings to be triggered upon the use of their fingerprint to unlock the vehicle. Both potential realizations would make use of the existing architecture style: publish-subscribe. Modules within the vehicle will be able to subscribe to information received by the hardware fingerprint scanners and respond in order to verify and authenticate the scanned fingerprint.

The first method - implementation of the fingerprint scanner as a primary ignition and unlock method as a replacement or a physical key or key fob - is accompanied by some security concerns. Despite advancements in fingerprint scanner technology, there still exists a possibility that a fingerprint scanner can respond to a fingerprint with a false match [2].

The second method will have a fingerprint scanner in the handle of the driver’s door to unlock the vehicle, as well as embedded in the ignition / start button, in addition to verifying the presence of a key fob within the vehicle. This provides a higher level of security than either verification method alone. This realization will also allow for the customization of user comfort and preference settings, while heightening security instead of compromising it.

The multi-factor authentication settings can be customized using a companion application to the Apollo vehicle. Within the app users may manage authorized fingerprints, adjust the preference settings associated with their fingerprints, and enable or disable the fingerprint scanner as desired. This Apollo App will be connected to the existing system with the use of Client-Server style architecture. The Apollo App will provide the interface for clients to manage their vehicle’s fingerprint settings. Fingerprint data and user preferences will be stored in the new Fingerprint Database module of the Cloud Server Layer. The Apollo App will provide the interface for clients to manage their vehicle’s fingerprint settings, and send this information to the Fingerprint Database. In the event that the vehicle is stolen or compromised, the users may remotely delete fingerprint data from the vehicle using the Apollo App. The Canbus module of the Open-Software Platform layer will act as the client in a client-server relationship with the Fingerprint Database to verify fingerprint scan data it subscribes to from the fingerprint scanners in the Hardware-Platform layer.

Fingerprint sensors have a trade-off between their False Acceptance Rate (FAR) and False Rejection Rate (FRR). That is, decreasing the FAR will lead to an increase in the FRR and vice versa [2]. Since security is of the utmost priority to the stakeholders, Apollo Auto would focus on having a low FAR, and combat the issue of false rejections by allowing users to enable or disable 2FA on the app so they can still use their key or key fob to unlock and start the vehicle in the case of a false rejection.

IMPACT OF EACH OPTION ON NFRs

Implementing a fingerprint scanner to Apollo Auto involves the creation and dependence of an app, changes to the hardware and software of the vehicle, and new user expectations, so the impact on many non-functional requirements must be considered.

Maintainability

The maintainability of the system refers to the ability to adjust and perform upkeep on the system as time progresses, and this is integral to the developers, engineers and employees of Apollo. For both approaches the effect on maintainability would be roughly the same, since the extra maintenance required from each would stem from the inclusion of the fingerprint scanners.

The hardware of the scanner will exist in two locations: the driver's door handle and the ignition. It would be the user's responsibility to maintain these sensors, although there could be software that checks their functionality, to warn the user if needed. The software for the feature would also need to be maintained like the rest of the system currently is, if not more often. Additionally, the app would need maintenance. There is not an Apollo App already being maintained, so this could negatively impact maintenance schedules. The maintainability of the original system will now have to check that the interactions between components involving the finger scanner are working and perform any maintenance if needed, as well as continue to perform any maintenance not involving the scanner. Overall, the Apollo Auto system would need to broaden and increase its maintenance in order to implement an effective fingerprint scanner.

Security

Security details depend on a given system, and essentially outline the safety of the data and the user. This is an important non-functional requirement for customers, since it is a very high end product which will be sought after, and this is the biggest area in which our two implementations diverge. However, in both cases, the addition of the fingerprint scanners will cause all of authentication, authorization, and non repudiation to benefit. A user is only allowed to get into the car and drive if they have been authenticated, by adding their fingerprint to the car via the app, and have also been authorized, by scanning their finger on the actual car itself. The app and scanner will keep a log of all users, as well as when and where they used the car, increasing the system’s non repudiation. With these benefits, it is also important to note that an increase of security around this information is necessary. The system needs to ensure integrity and encryption are well implemented. It would be a total mess should someone hack in and either steal or change a users' information.

That said, there is also the issue of false positives and false negatives in scanning people’s fingerprints. Technology has come a long way, however there still does not exist a fingerprint scanner on the market that is entirely perfect. There will always be a small risk of misclassifying a person’s fingerprint, and the second suggested implementation covers this risk more strongly than the first. Allowing the user the option to have 2 factor authentication, requiring a key as well as just their fingerprint may come at a slight cost to maintainability and convenience, however the extra security offered from this addition may outweigh these deficits. After all, the risk of a fingerprint scanner failing on a car is more worrying than a fingerprint scanner failing on a phone. [2]

Evolvability

As evolvability is assessed in the context of how a system is likely to change, the first step is to consider the future of the system. As the field of autonomous driving is so new and constantly evolving, it can be assumed that big changes are coming. It is important to note that as soon as the fingerprint scanner feature is implemented to a vehicle, it must be kept and maintained, for the users sake. Right now, all components of the system work together to ensure good performance is reached and evolvability is attainable. By adding this feature, compatibility between itself and the other components, and amongst the original components can become less flexible. It would be ideal that Apollo develops their own fingerprint scanner feature so that they are sure it is compatible with the system, and allows for as much evolvability as possible. A major challenge could be the possibility that implementing this feature “cements” components together, so they can’t grow or change, something that must be acknowledged.

Testability

Testability refers to how easy a feature is to test. The testing requirements of a fingerprint scanner are not simple. There’s a few ways to approach this, but they should all be used to ensure maximum performance. First, a prototype could be used to verify the app works and syncs properly with the hardware. Second, the entire feature would need to be implemented, and users feedback would be necessary. And third, as fingerprint scanners are already in use by other car manufacturers, there is research that can be referenced and used. Developers would want to get solid results before fully deploying the product, as it is a large undertaking. This could all be very time consuming, difficult, and expensive, and delay the deployment of Apollo Auto.

Performance

Performance of the system refers to the ability to reach goals efficiently. This is another big non-functional requirement for customers. This feature could help with some goals regarding estimations and user experience. By collecting information about the driver, map suggestions, the car seat position, heat/AC setting, and more could be learned and predicted to make the driver most comfortable. This feature wouldn't necessarily improve the driving performance, but it would improve the user's experience. This feature could easily be included for both suggested implementations, and the data gained from the fingerprint could offer the information required to know who was in the driver seat.

Risks

There are a few potential risks for both implementations of this feature. The risk of locking a user out of their vehicle due to sensor damage or system malfunction is a potential threat. Also, delayed production, increased testing, and a need for a larger budget is a major risk, as the fingerprint scanner will need to be thoroughly tested and implemented. The second suggested implementation does mitigate these risks however, since it would offer the users a chance to change the car’s settings through the app to disable two factor authentication and just use the keys until the scanner is fixed. In the case of the first implementation, without the keys, the user might need to use the app to unlock the car each time, or call a mechanic.

DETERMINING THE BEST REALIZATION

After some reflection, the best strategy for implementing the fingerprint scanner feature would likely be the second realization proposed, allowing the user to use 2 factor authentication through requiring them to both have an authorized fingerprint, and be in possession of the car keys. This approach does come at a slight drawback to maintainability and testability just for the fact that it requires the upkeep of the key fobs, a key detector feature, and more features in the proposed app to account for users opting out of the 2-factor authentication in extreme circumstances. All of this will require maintenance and increase the complexity of the system, however the benefits to be gained from this approach outweigh these small cons.

Security and convenience are 2 of the most important non-functional requirements for the product, as they are major selling points sought after by the customer base, and as has been shown, this approach offers great improvement in these areas. The addition of simply needing the key fob in hand requires very little effort on the user’s part, which is good for convenience, and offers a big increase in security. Any increase to security goes a long way in this product, given the price and rarity of it, and in terms of ranking the non-functional requirements and needs of stakeholders, it deserves to be given some priority.

INTERACTIONS AND CHANGES REQUIRED

OVERVIEW OF FINGERPRINT SENSOR FUNCTIONALITY

There are generally two types of fingerprint sensors: optical and capacitive. We researched both types to ensure we made the right decision based on the NFRs. First, an optical scanner uses a special sensitive light to capture the bumps and dips in the user’s fingerprint, then encodes the patterns it sees into a long vector of 0’s and 1’s. This option is not as secure since it is technically possible for the image of a user’s fingerprint to be duplicated or forged, thus increasing the possibility of car theft [3].

However, capacitive fingerprint sensors generate an image by creating an electrostatic field based on the charges it receives from the user’s finger, leveraging the fact that humans are conductive and that the charges received would vary based on the fingerprint shape. According to Arrow Electronics, capacitive sensors are more secure as “an image cannot get [past a] capacitive fingerprint sensor and other materials will record different changes in charge on the capacitor” [3].

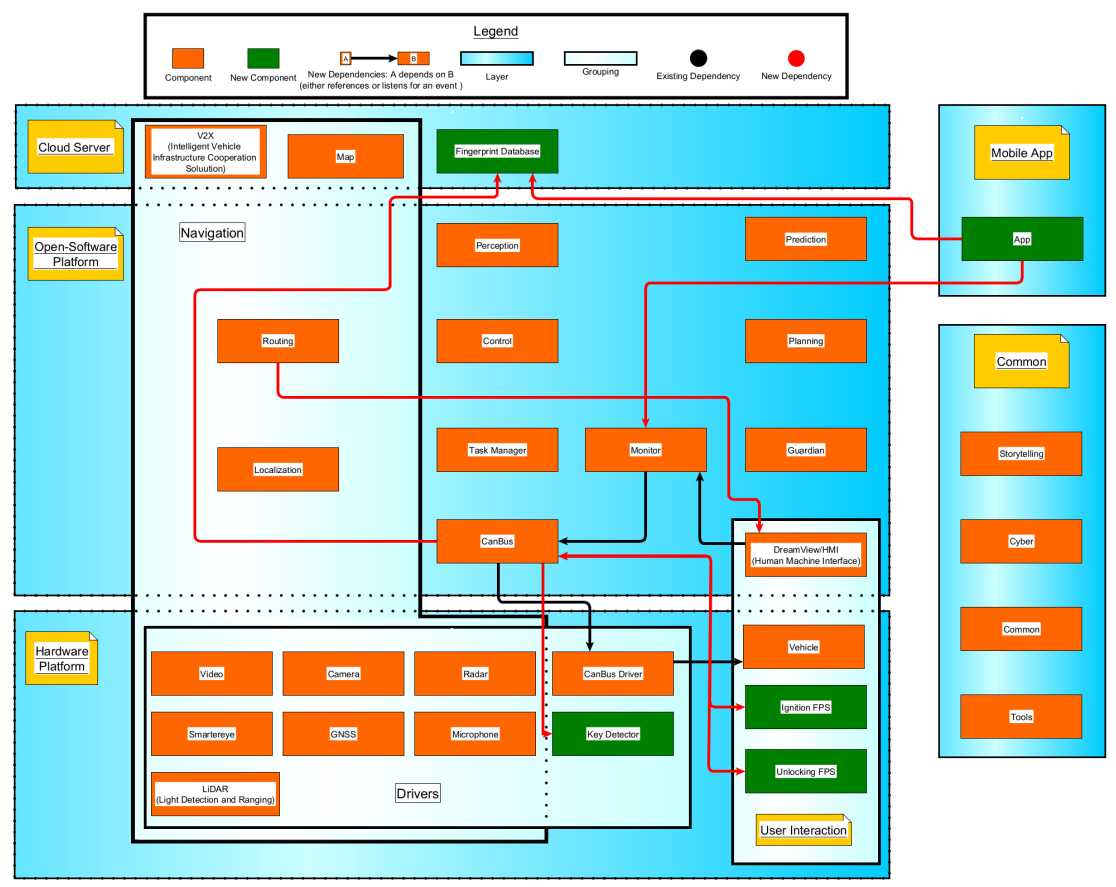

Figure 1: Depicts the connections required as a result of our enhancement. Note that a black arrow indicates that the dependency at this level already existed in our updated architecture (from Assignment 2) and a red arrow indicates that a new dependency was formed. A new diagram was used so the new connections would be easier to see.

OVERVIEW OF INTERACTIONS

Capacitive fingerprint sensors use a combination of capacitor circuits, circuit tracks and conductive plates to retrieve the charges from the user’s fingerprint. An analog-to-digital converter converts the charges into digital data, which would then be used for authentication [3]. Recall that the software architecture for Apollo Auto is split into the following four layers: Cloud Platform, Open Software Platform, and Hardware Platform. With this in mind, any new “fingerprint authenticator” component -- each of which would contain the circuits and plates described above -- would need to be added to the Hardware Layer within the User Interaction component. Since there will be two authenticators, one for unlocking the vehicle and one for starting the ignition, we will refer to these components as “Unlocking FPS” and “Ignition FPS,” where FPS stands for “fingerprint sensor.” Finally, recall that the publish-subscribe style is used in Apollo Auto for data communication.

Let us discuss the Unlocking FPS component first. As mentioned, the input to a fingerprint authenticator would be the charges generated by the user's fingertips, and the output would be a stream of data representing the digital encoding of that fingerprint. Once the input is received, the Unlocking FPS would publish the encoded image to the CanBus, which then calls on the Cloud Layer, where a database (“Fingerprint Database”) of the prints currently registered with the vehicle would be compared against for authentication, as well as verify the key is in range using the Key Detector module in Hardware. The CanBus would then publish the status of the authentication to the Unlocking FPS component, which would either inform the user of success or failure appropriately. Note that the Vehicle component (also in User Interaction), which represents the “regular” parts of the vehicle hardware such as wheels, brakes, etc., would also need to be called by the CanBus driver, and only unlock the car if both the correct key and a valid fingerprint were supplied (assuming 2FA is enabled on the app). The same communication occurs with the Ignition FPS; the only difference is that here, starting the car is the user action that relies on authentication instead of unlocking the car.

Now, let us discuss the mobile app. The mobile app is used to register new fingerprints that the car will recognize; it is also used to enable/disable 2FA so that they can still unlock the car with just their keys if the prints fail. The app is used for registering fingerprints as opposed to the sensors on the car itself to prevent the scenario where, for example, the car owner drives somewhere with their friend and leaves the vehicle to fill up gas, and the friend discreetly adds their prints to the system in the meantime. On the app, users will be able to view whose prints are currently registered and even who is currently driving the car.

Once a user registers their prints, this information is stored in the Cloud Server layer in the Fingerprint Database mentioned above, reinforcing the Client-Server style discussed in previous reports. The fingerprint sensors and the CanBus then act as the clients, requesting information from the server whenever authentication is requested.

Also, once the user’s fingerprint is identified, the relevant user preferences are also accessed from the fingerprint database by CanBus and published to be received by the Monitor. The CanBus is in charge of using the CanBus driver to modify the vehicle settings to the user’s preferences (changing the seat position for example). The monitor displays some relevant information to the user via the Dreamview, and displays common destinations of this particular user. If the user selects one of their bookmarked locations, the Dreamview publishes a message which gets picked up by Routing, starting the process of querying the HDMap and beginning the travel.

Finally, if someone attempts to gain access to the vehicle, but is found not to have matching fingerprints, (and a valid key fob if 2 factor authentication is enabled), a notification will be sent to the owner through the app. Once the user was found to be unauthorized, the CanBus would alert the Monitor, and the monitor would be in charge of sending the message off to the User’s app.

DISCUSSION OF LOW-LEVEL CHANGES (IMPACTED DIRECTORIES AND FILES)

As seen in Fig. 2, the green components represent new components that would have to be created to support our enhancement. These include a Fingerprint Database in the Cloud Server, a mobile App, and two fingerprint sensors in the hardware layer -- Ignition FPS, and Unlocking FPS. The enhancement also spawned new dependencies (depicted in red) as well as reinforced existing ones (depicted in black).

NEW DEPENDENCIES (RED ARROWS IN FIG. 2)

Open Software Platform ↔ Cloud Server

1. App → Monitor

Impact: Create the file notify_app.cc under Open Software Platform/monitor

Explanation: A new file would have to be created under monitor to handle notifying the mobile app in case an intruder attempts to break into the vehicle.

2. CanBus → Fingerprint Database

Impact: Create the directory fingerprint_database under Cloud Server

Explanation: Although the database would be stored on the cloud, the new directory in Cloud Server would need to be created in order to query the database, similar to how the map and v2x directories are used to query map and location information from the vehicle.

Open Software Platform ↔ Hardware Platform

1. CanBus → Key Detector

Impact:

○ Create the directory key_detector under Hardware Platform/Drivers

○ Create the file retrieve_key_status.cc under Open Software Platform/canbus

Explanation: A new key_detector directory would have to be created to integrate the driver for the Key Detector software. Since CanBus subscribes to this component to know if the user’s key is in the vicinity before querying the Fingerprint Database, it needs the file retrieve_key_status.cc to handle this functionality.

2. CanBus ↔ Unlocking FPS

Impact:

○ Create the file take_fps_input.cc under Open Software Platform/canbus

○ Create the directory ignition_fps under Hardware Platform/User Interaction

Explanation: A new file in the canbus directory would have to be created to retrieve the digital image output by the fingerprint sensors and pass these to the Cloud Server directory which would query the database in the cloud. Additionally, a new directory would have to be created within the Hardware Platform to handle user interaction with the fingerprint sensors (displaying whether the authentication passed or not, converting the analog data to digital data, etc.)

3. CanBus ↔ Ignition FPS

Impact:

○ Create the file take_fps_input.cc under Open Software Platform/canbus (done above)

○ Create the directory unlocking_fps under Hardware Platform/User Interaction Explanation: Same as above; repeat for the Unlocking FPS.

Connections within Open Software Platform

1. Routing → Dreamview/HMI

Impact: Create a file display_potential_locations.cc under Open Software Platform/User Interaction/dreamview/backend/map

Explanation: This new file is needed in the Dreamview to display to the user their most frequently visited locations so that the user has customized travel options once they “sign in” with their fingerprint.

STRENGTHENED DEPENDENCIES (BLACK ARROWS IN FIG. 2)

Open Software Platform → Hardware Platform

1. CanBus → CanBus Driver

Impact:

○ Create the directory unlock under Hardware Platform/Drivers/canbus

○ Create the directory ignition under Hardware Platform/Drivers/canbus

○ Create the directory activate_preferences under Hardware Platform/Drivers/ canbus

Explanation: The CanBus Driver needs to add the driver functionalities to unlock the car, start the ignition, and activate the user’s preferences (i.e. change the music, heating, and/or adjust the seating position) so that the CanBus can set these into motion once the user “signs in” with their fingerprint.

Connections within Open Software Platform

1. Monitor → CanBus

Impact: Create the file retrieve_preferences.cc under Open Softwar e Platform/monitor
Explanation; The Monitor component needs a file with the functionality to retrieve user location preferences from the CanBus after the CanBus queries the Fingerprint Database (which also holds information on user preferences). The Monitor needs user location preferences so that it can be easily accessed by Dreamview.

2. Dreamview → Monitor

Impact: Create a new file retrieve_preferences.cc under Open Software Platform/User Interaction/dreamview

Explanation; The Dreamview component needs a file with the functionality to retrieve user location preferences from the Monitor so that it can display them to the user.

HIGH-LEVEL AND ARCHITECTURAL STYLE CHANGES

Looking at the figure of our updated architecture from our last report, we can see that no new high-level dependencies were added, thus preserving the core structure of the original architecture. It is also safe to lump the new sensor technology in with the publish-subscribe architecture; after all, the sensors would not react or “publish” their output until they received user input. Communication between the CanBus and the Cloud Layer as well as communication to and from the new mobile app reinforces the Client-Server style established in previous reports. Finally, the Layered style is preserved as components do not “jump” layers to communicate with other components. In conclusion, no major high-level or architecture changes would need to be made to accommodate the new feature, which points to the strength of the maintainability of our previously determined architecture.

SEQUENCE DIAGRAMS

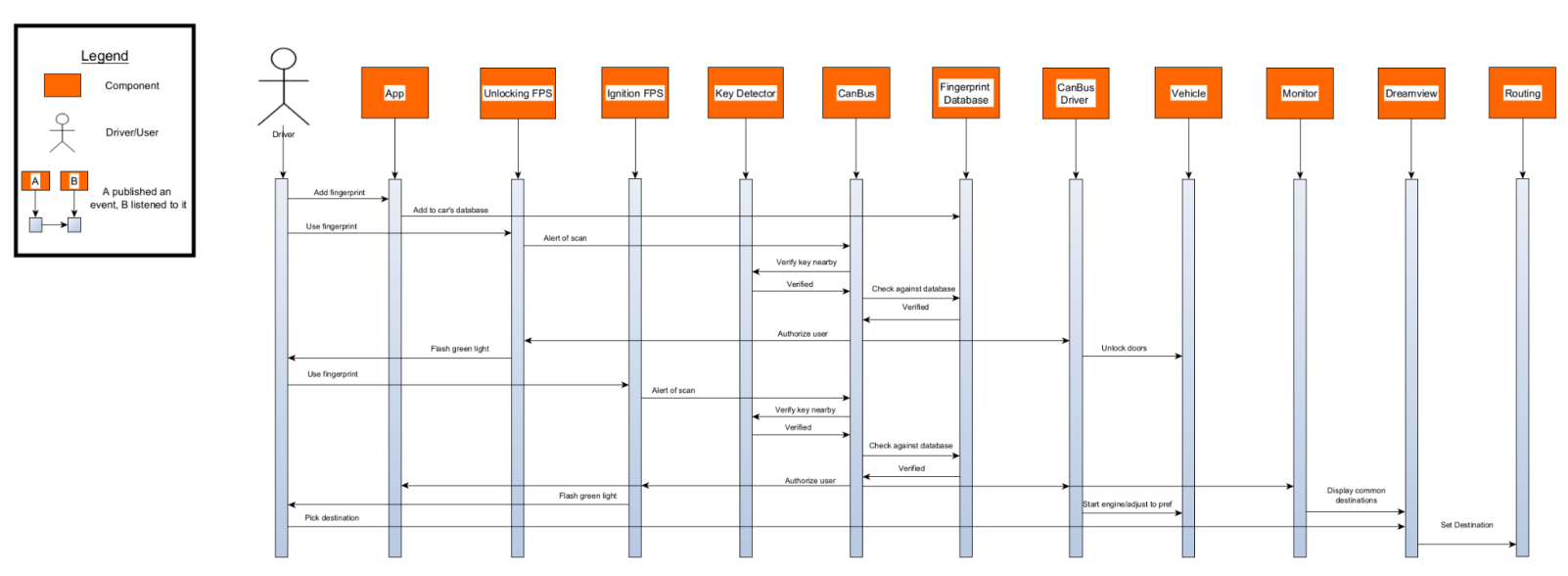

Figure 2: Use case 1: Setting a new fingerprint, then unlocking and starting the car using it

This first sequence diagram depicts a very simple use case of the fingerprint sensors working optimally for a new car owner. The diagram follows the sequence of a user entering their fingerprint into their car’s fingerprint database using the Apollo App, then using their fingerprint to enter, and start their car. The CanBus can be seen to make calls to the Key Detector and Fingerprint Database, verifying that the key fob is in range, and that the fingerprint used is in fact a valid fingerprint for the car. It does this for both the door lock, and the ignition lock in turn, opening the door and starting the car respectively after the user successfully authenticates themselves as a valid driver. The CanBus also attempts to adjust the car to the user’s preferences, and alerts the Monitor, which in turn displays common destinations frequented by the user through the Dreamview. Finally, the user selects one of the destinations displayed, and this gets sent to Routing to begin formulating a plan and begin the journey.

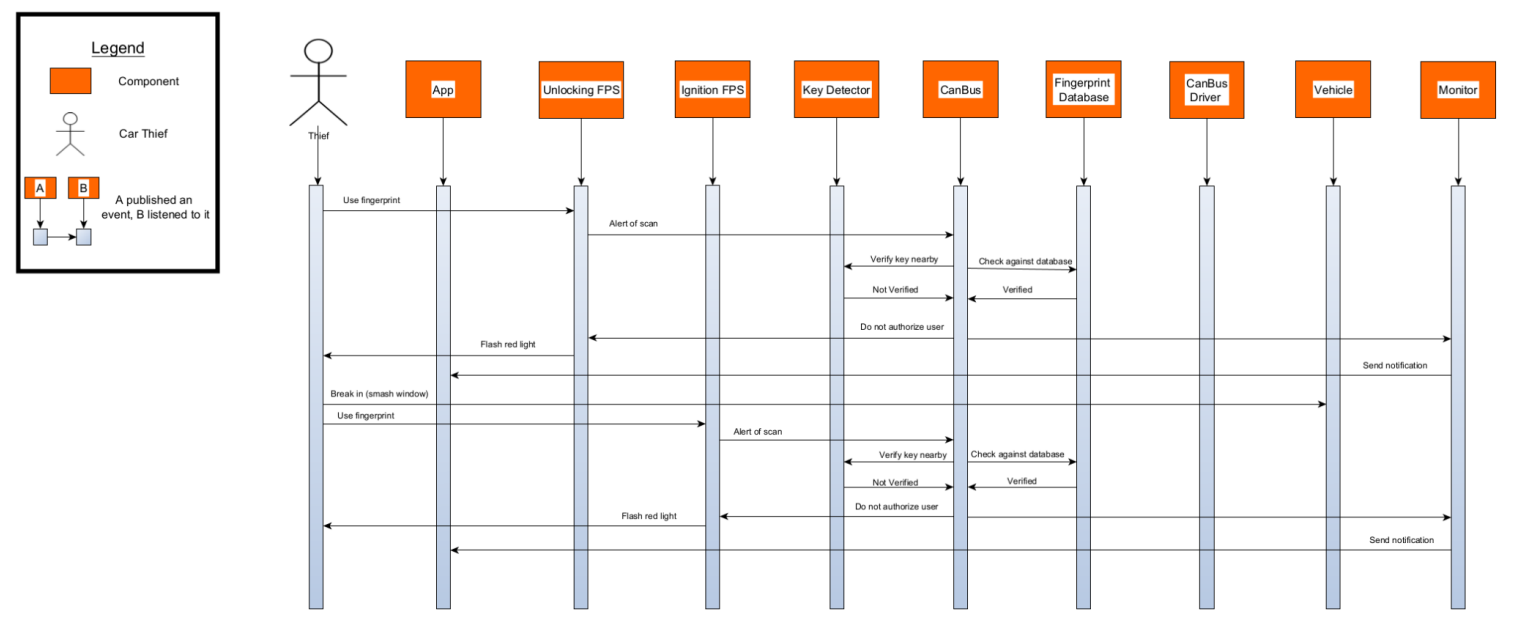

Figure 3: Use case 2: Someone trying to break into a car, getting a false positive on the fingerprint scanner.

This second sequence diagram depicts the use case of a car thief attempting to steal the car, and being thwarted by this security feature. In this example, the car thief does not have the car keys, but they happen to have fingerprints which are very similar to one of the authorized drivers of the car. While their fingerprints are not identical, they are close enough that the fingerprint scanners falsely register them as a match to fingerprints already in the database, however since the thief does not have the keys, the key detector does not validate them and the CanBus refuses to unlock the door. The thief manages to break the car window and get into the driver seat, however again they are still unable to start the car without having the key, even though their fingerprint shows up as a false positive in the database. Both times the thief attempts to use the fingerprint scanner, a notification is sent to the car owner’s phone app, alerting them of the theft attempt.

TESTING

Each of the new dependencies created by the introduction of the fingerprint scanner enhancement must be tested to confirm that non-functional requirements are satisfied. The hardware of the fingerprint scanners would have to be tested for False Acceptance Rates and False Rejection Rates, compared with a known database of fingerprints. If the Canbus receives invalid scan information from the FPS it must alert the user and prompt a re-scan. The user must be able to disable the fingerprint scan requirement on the unlock and ignition system using the mobile app if either FPS malfunctions.

The Monitor module must be made aware of rejected fingerprint scans, and will alert the user of necessary maintenance to either FPS in the event of a detected failure. The FPS (Unlocking and Ignition) would both have connections to the CanBus, and the output of the FPS – the digital encoding of a fingerprint – would be tested to confirm that the CanBus is receiving an accurate encoding.

The new dependency between the CanBus and the Fingerprint Database in the cloud layer would have to be tested for its connectivity, ensuring that the Canbus is able to communicate with the Fingerprint Database, and that the correct fingerprint match is being retrieved for any given scan. The FPS components would then receive a confirmation of authentication from the Canbus.

Communication between the new mobile app module and the Cloud Server would need to be tested to confirm it satisfies the non-functional security requirements. This connection will not expose unencrypted fingerprint data or store it in any location other than the Fingerprint Database in the Cloud layer. This connection must also have an acceptable performance speed. New fingerprints must be able to unlock a vehicle within 5 minutes of being registered on the mobile app (on a 5 Mbps upload speed internet connection).

User comfort and expected response times must be maintained. The Canbus driver must begin to modify the vehicle settings to a user’s existing preferences within 1 second of the user triggering the Unlocking FPS. The length of time for a user to unlock and start the vehicle without multi-factor authentication shall not be extended by longer than 2 seconds when the fingerprint scanners are enabled.

CONCLUSIONS

This report discussed impacts and aspects of a fingerprint scanner feature. We discussed different routes of implementation and usage, high level and low level impacts, as well as benefits and risks. As a user depends on their car and would consider it a large investment, they would want it to be as secure and comfortable as possible. We discussed why the best usage of a fingerprint scanner is as a form of two factor authentication, and why the best implementation would use capacitive sensors, as well as how they could work. We discuss use cases and file interactions that explain how the necessary components and dependencies would work. Additionally, we outline testing requirements and introduce possible risks so they can be handled as best as possible. For future direction, further research into testing, development, and implementation would make sense. We’ve provided a solid foundation so that the most informed decisions to minimize risk and maximize benefits can be made. From here conceptual and concrete architectures for subsystems, and project planning can start to be developed.

LESSONS LEARNED

We learned that there are a few different roads that can be taken when implementing a fingerprint scanner, whether it's a two factor authentication or not, and whether a capacitive or optical sensor is used. We learned how to use the expectations of the Apollo Auto system, as well as its architecture and structure, when considering the best route of implementation. We learned that a feature with little impact on driving capabilities can still have a huge impact on the system’s architecture, security, and user experience. We learned how to start building a foundation for future implementation, and that it is not necessarily a straightforward path, but one which involves lots of compromise and consideration. The overall takeaway is that feature implementation is not a small undertaking, and requires a lot of analysis and discussion.

REFERENCES

[1] “In which cities are cars most likely to be stolen?,” Insurify, 16-Mar-2022. [Online]. Available: https://insurify.com/insights/cities-most-stolen-cars-2022/. [Accessed: 10-Apr-2022].

[2] “Fingerprint Recognition for the Car: Use Cases and Design Considerations,” Electronic Design, 23-Dec-2019. [Online]. Available: https://www.electronicdesign.com/markets/automotive/article/21119162/fingerprint-recog nition-for-the-car-use-cases-and-design-considerations. [Accessed: 10-Apr-2022].

[3] M. Gudino, “How Do Fingerprint Scanners Work? Optical vs. Capacitive,” Arrow, 08-Jun-2020. [Online]. Available: https://www.arrow.com/en/research-and-events/articles/how-fingerprint-sensors-work. [Accessed: 09-Apr-2022].

Assignment 2

Concrete Architecture

Presentation

Click here to view presentation.

Report

ABSTRACT

Using our conceptual architecture of the Apollo Auto system, Understand by SciTools, and our knowledge of software architecture, this report analyzes the concrete architecture of the Apollo Auto system and one of its subsystems. We started by deriving the concrete architecture, which showed us that we needed to create a top-level subsystem named Common to help organize the data flow.

After finalizing the concrete architecture, we noted that components within each top level subsystem have dependencies to other top level subsystems - there is a lot of communication between subsystems. We first tackled the Common subsystem in the reflexion analysis, which justified its addition to the concrete architecture. Then, we recognized discrepancies found within the Open Software Platform of the concrete architecture and the OSP of the conceptual architecture, all of which were affiliated with the Planning or Localization subsystems.

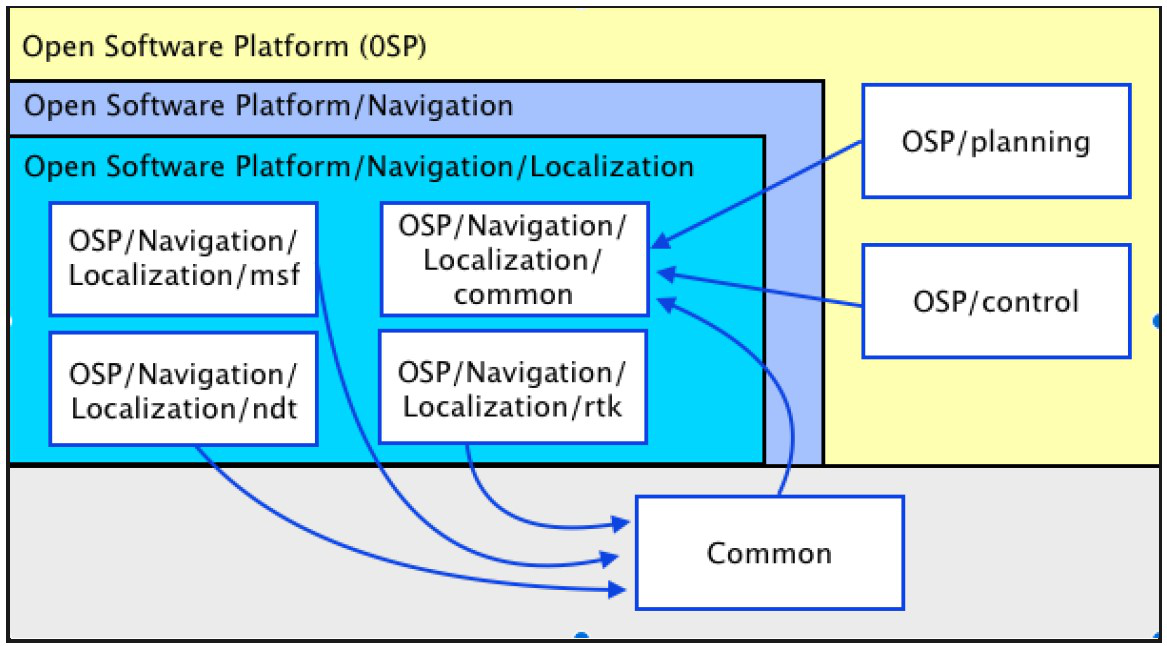

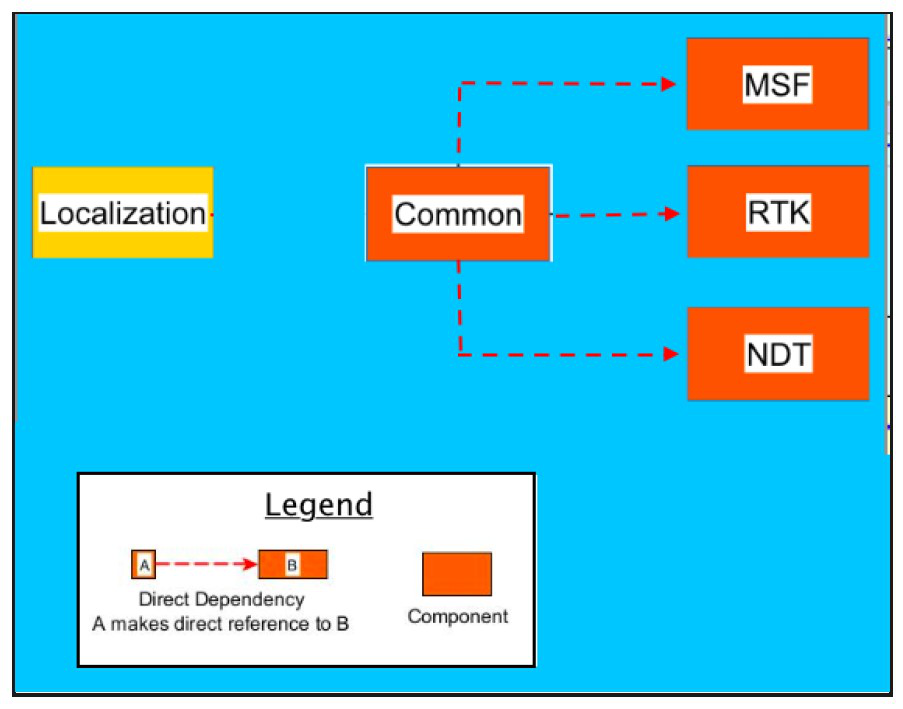

We then delved into the Localization subsystem, as it performs an important function - estimating the vehicles’ location. This subsystem was only briefly discussed in our conceptual architecture, so the discrepancies found in the reflexion analysis totally outlined the subsystem.

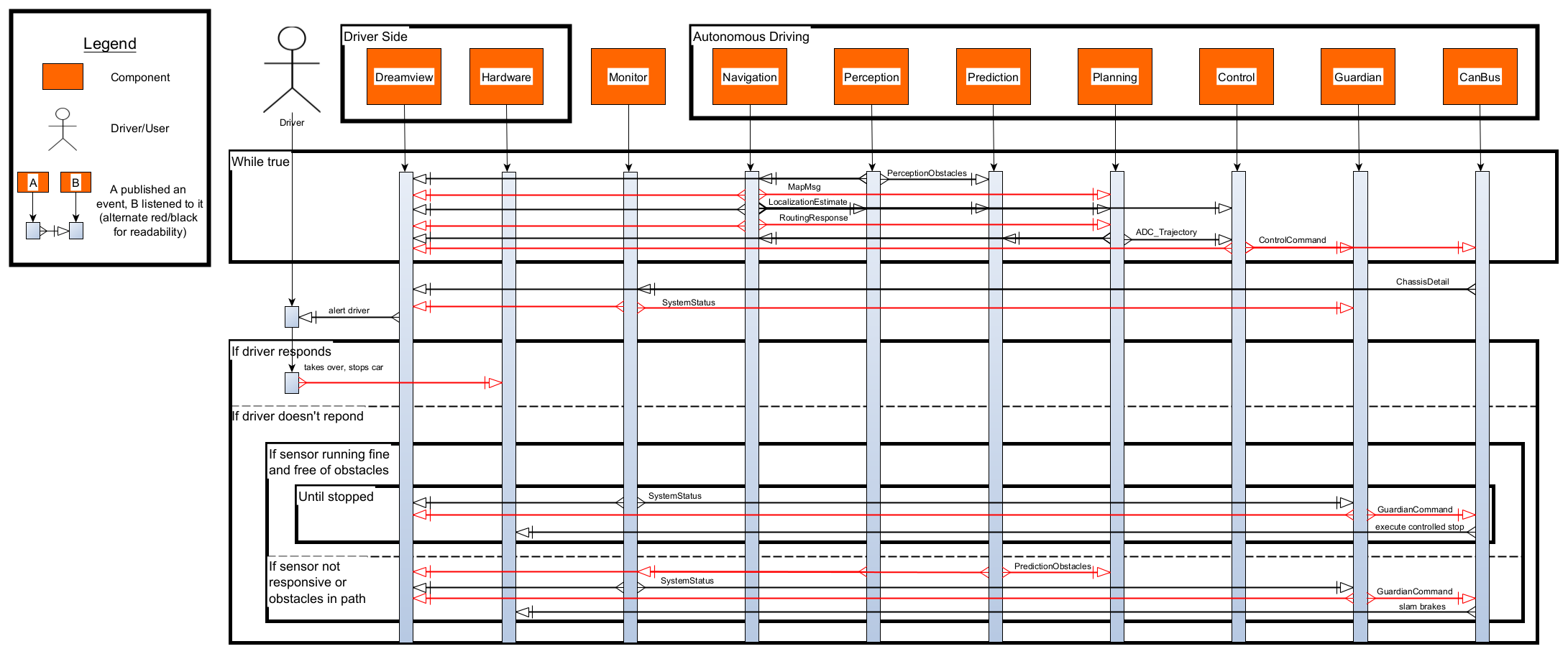

Finally, we revisited our use cases from the conceptual architecture, applying our concrete architecture to them. We found that both cases were very similar and had only a few notable differences regarding concurrency and communication.

INTRODUCTION

This report aims to explore Apollo’s concrete architecture and the process taken by our team to derive it from our conceptual architecture. The first section of the report will go through this derivation process with explanations for our decision making. The next section will discuss the high level concrete architecture, going through the top-level subsystems and their interactions. In the third section we will dive into a deeper analysis of the inner architecture of the Localization subsystem and its interactions as well. We will then perform reflexion analysis on both the top level architecture and the inner architecture of the Localization subsystem, where we investigate the discrepancies between their conceptual and concrete architectures and provide explanations for these differences. Next we will analyze two sequence diagrams representing non-trivial use cases. Finally, we will conclude with the lessons we’ve learned.

While deriving the conceptual architecture of Apollo Auto in the previous assignment, we discovered that the architecture uses a publish-subscribe style. We have expanded this initial understanding to derive the concrete architecture by investigating the internal dependencies within the system using the Understand tool. We archived subsystems into directories based on our conceptual architecture then iteratively revised this by identifying problem areas within the produced graph representing the internal dependencies. Once we finalized our graph in Understand, we then drew our own diagram to explicitly represent the concrete architecture. We followed a similar process to investigate the architecture of our chosen subsystem, Localization, by deriving a conceptual architecture and analyzing its own internal dependencies to create a concrete architecture. Finally we performed reflexion to analyze the differences between our derived concrete architectures and our previously determined conceptual architectures.

The process of deriving the concrete architecture of both the overall system and the Localization subsystem and performing reflexion allowed us to gain a better understanding of how the subsystems work together to provide the end-result functionality.

CONCRETE ARCHITECTURE

TOP-LEVEL SUBSYSTEMS

DERIVATION PROCESS: CONCRETE ARCHITECTURE

As noted in our report on the conceptual architecture of Apollo Auto, the system mainly uses publish-subscribe for data flow. Thus, in order to derive the concrete architecture, we used a combination of the Understand software from Scitools and a mapping of the publish-subscribe calls.

The Mapping Process

The first step of the derivation process was to map the source code directories into the subsystems we defined in our conceptual architecture in Understand. We decided to take this approach as building the concrete architecture from scratch would risk ending up with subsystems that are too distinct from those present in the conceptual architecture. This would hamper reflexion analysis by making it difficult to detect added or missing dependencies. Finally, recall that our conceptual architecture was divided into top-level layers; Cloud Server, Open Software, and Hardware [1]. These layers, or systems, are further organized into subsystems, such as “Navigation” and “User Interaction.”

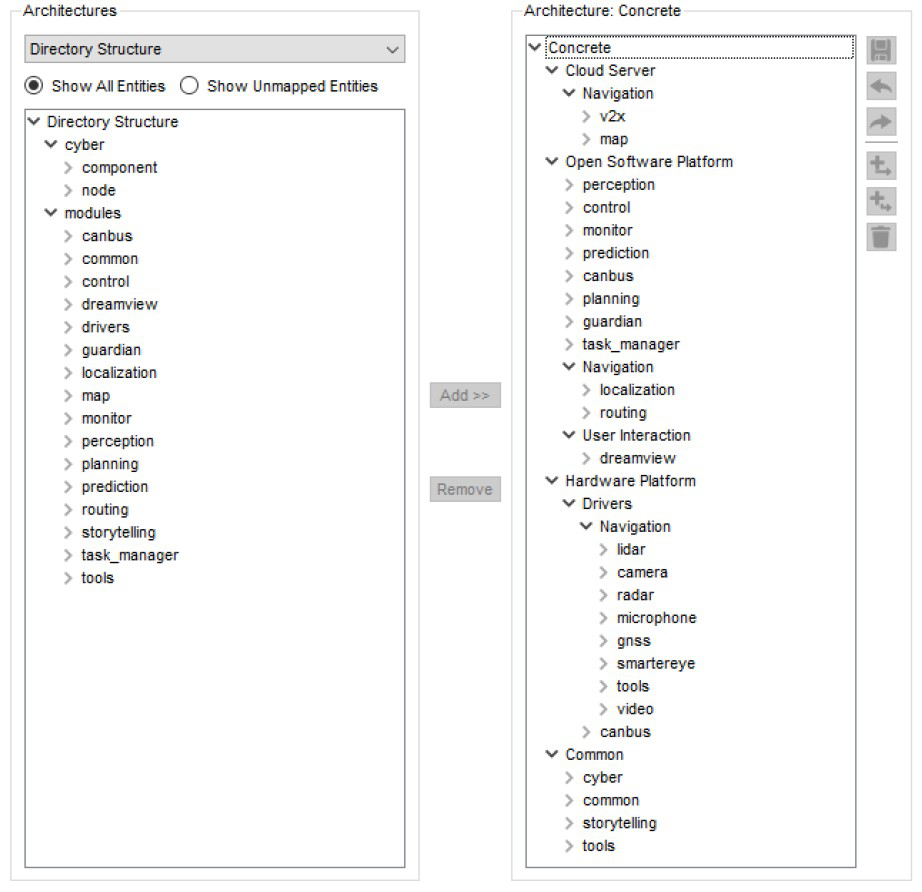

Figure 1: The mapping of source code directories to systems and subsystems in Understand.

First, we mapped the V2X and Map modules into the Cloud Server system, under the “Navigation” subsystem. Next, we mapped modules into the Open Software Platform; these included Perception, Control, Monitor, Prediction, CanBus, Planning, and Guardian. Localization and Routing fell under the “Navigation” subsystem, and Dreamview fell under the “User Interaction” subsystem within the Open Software system. Finally, all the modules in the “drivers” directory in the source code were mapped to the Hardware Platform system, all of which fell under “Navigation” except for the CanBus driver, which is responsible for informing the hardware of control commands but does not collect navigation data like the Camera and Radar do. These configurations were easy to map as the source code directories naturally matched the subsystems we had decided upon for our proposed conceptual architecture.

However, some of the source code needed more consideration. The high-level “cyber” directory as well as the Common, Storytelling, Task Manager, and Tools modules did not appear in our conceptual architecture.

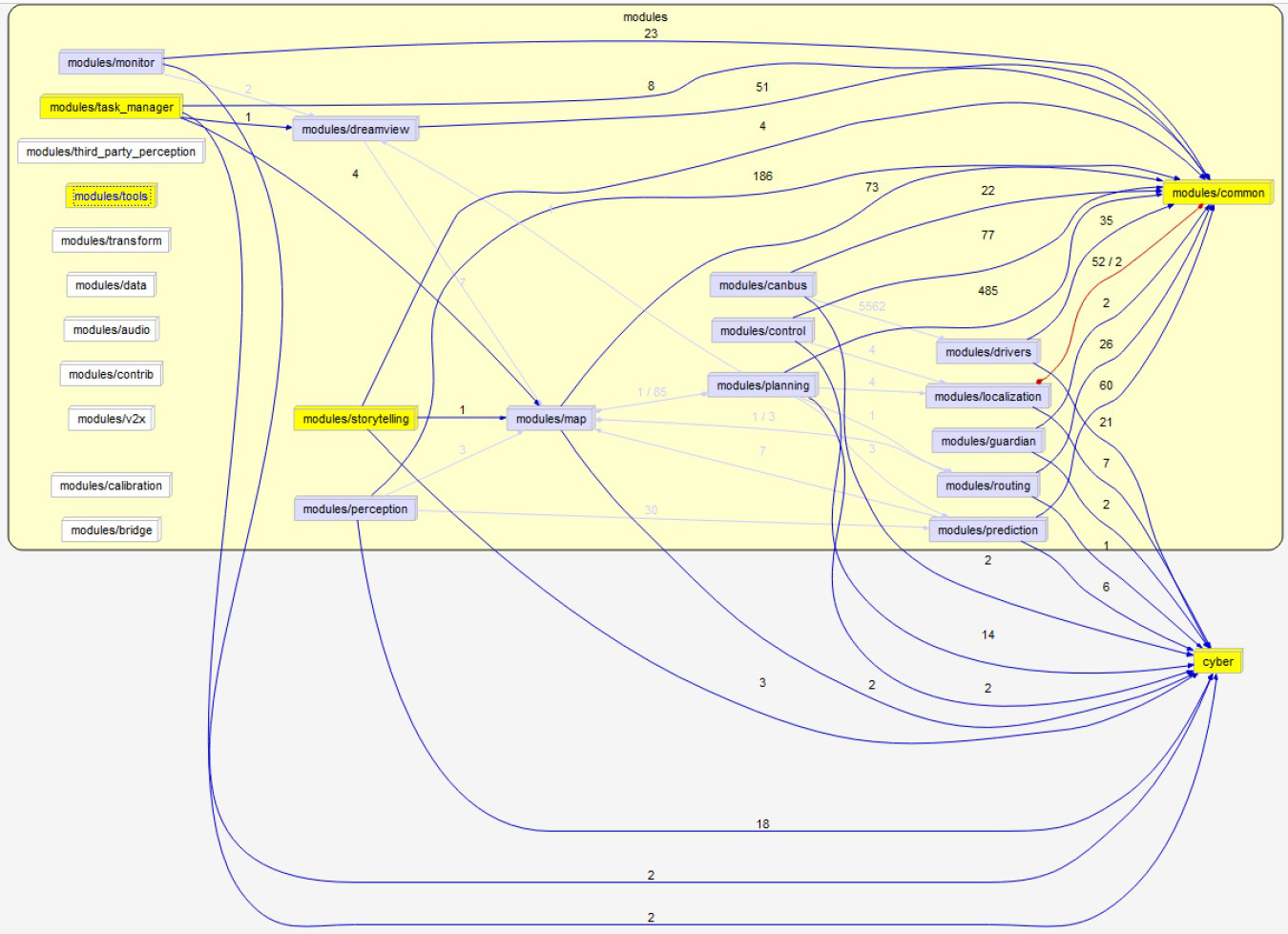

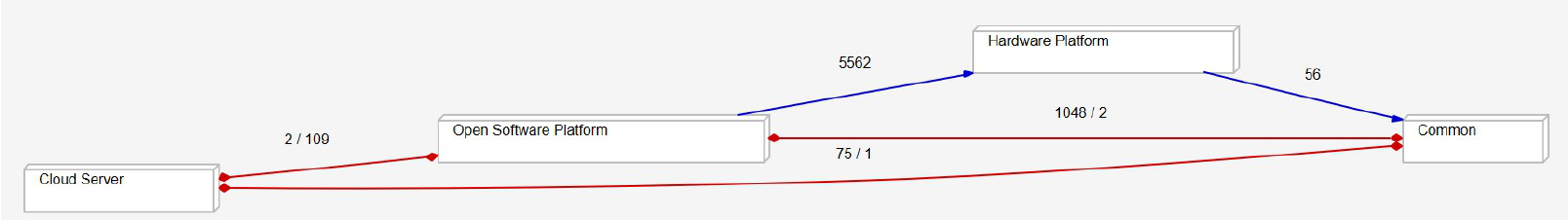

Figure 2: The interaction between the high-level directories of the source code, highlighting the connections between subsystems not seen in our conceptual architecture.

To begin, the source code dependencies (Fig. 2) demonstrate a clean split between the “modules” and the "cyber" directory, as files in “modules” depend on the “cyber” directory, but not vice versa. Such a structure is optimal as to avoid bidirectional dependencies that can cause tight coupling. These dependent files span across the Cloud (i.e. modules/map), Hardware (i.e. modules/drivers), and Software (i.e. guardian), suggesting that the “cyber” directory should go in a subsystem in the concrete architecture that could be cleanly accessed by all. Thus, we created a “Common” subsystem in our concrete architecture.

Similarly, Fig. 2 also indicates that the Hardware, Software, and Cloud systems all use the "common" directory, so it should also belong in this "Common" system. This also matches the following description of the directory in the source code README: “[The common] module contains code that is not specific to any module but is useful for the functioning of Apollo” [2].

Next, the Storytelling module allows developers to simulate non-trivial scenarios with Apollo Auto vehicles [3]. Since the modules that subscribe to Storytelling are scenario-specific, the safest and most flexible option would be to place the module in the “Common” system.

The Task Manager module depends on the Dreamview module in the Open Software subsystem as well as the map in the Cloud subsystem in the layer below. Considering that, in a layered architecture, layers generally serve as a client to the layer below [4], it is feasible to map the Task Manager to the Open Software system.

Finally, the Tools module is not dependent or depended on; however, since the “tools” directory in the source code contains sub-directories that appear to reference modules across subsystems, we reason that the tools are optional but potentially span the entire system. Thus, it belongs in the “Common” subsystem.

Figure 3: The high-level architecture of Apollo Auto in Understand.

Handling Bidirectional Dependencies

After performing this mapping, we observed any unusual-looking dependencies to amend the concrete architecture. In Fig. 3, the red arrows indicate bidirectional dependencies. While bidirectional dependencies are common in software systems, we checked if it was possible to get rid of them and reduce coupling, especially as these dependencies were only the result of one or two files. We also note that these dependencies did not exist in our conceptual architecture. In the end, we determined that each dependency had reason enough to stay, and we refrained from making any other changes. See the reflexion analysis section for an in-depth explanation of each case.

FINAL CONCRETE ARCHITECTURE

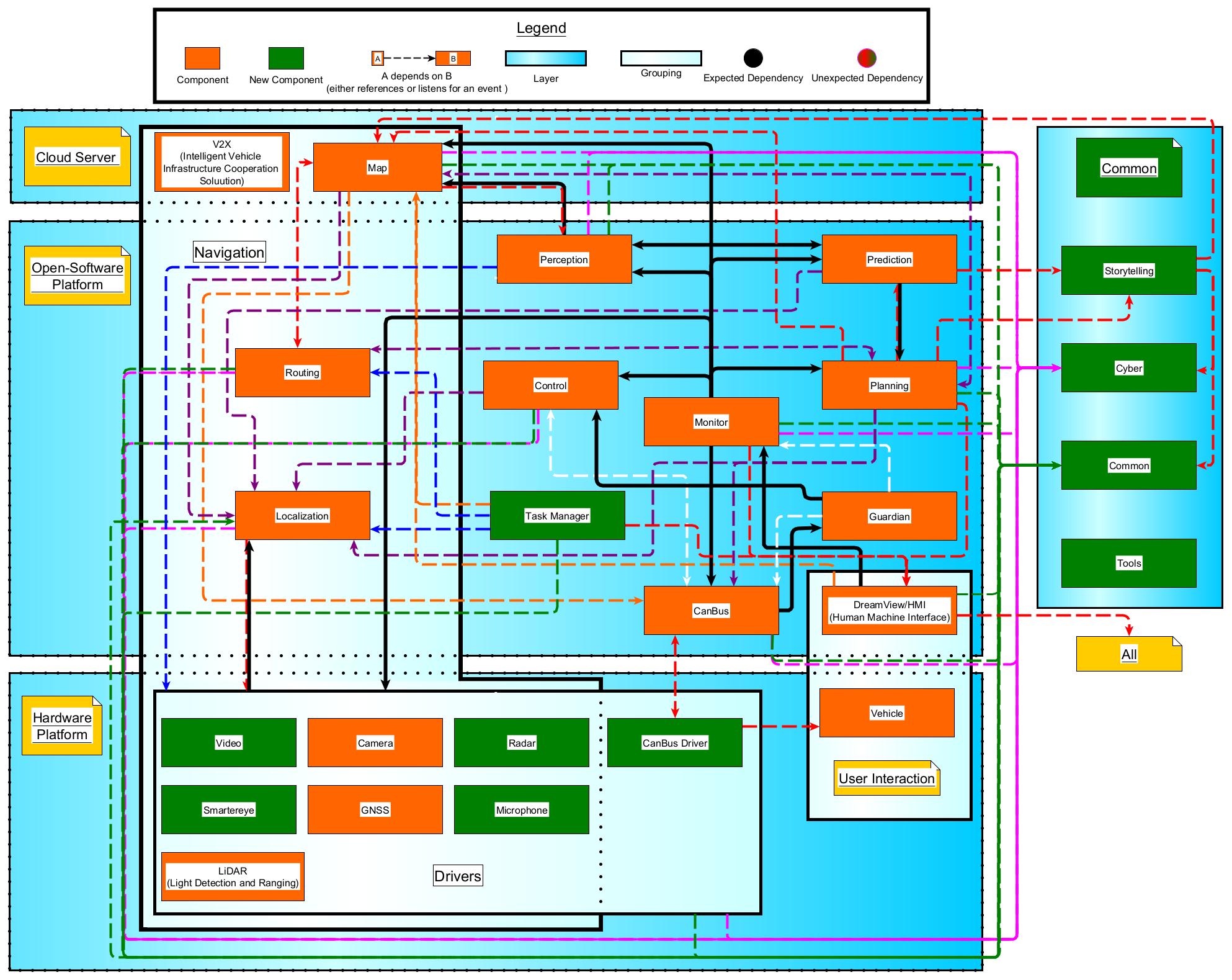

Figure 4: Dependencies in concrete architecture.

Once we found a way to explain these dependencies, we created two diagrams; one displays the dependencies in Understand and one shows the pub-sub graph of subscribed connections. We decided to separate these to make them easier to read. Note that a “subscription” still counts as a dependency, and both will be considered when performing reflexion analysis.

DESCRIPTION OF CONCRETE SUBSYSTEMS AND INTERACTIONS

Our concrete architecture is divided into four top-level subsystems – the Cloud Server, the Open Software Platform, the Hardware Platform, and the Common subsystem. The main architectural style of the system is publish-subscribe. Where information is not obtained through a pub-sub relationship, it will be noted

The Cloud Server subsystem in our concrete architecture corresponds to the Cloud Service Platform of the Apollo system. This subsystem’s functionality is mostly outside of the scope of this project, but there is a bidirectional relationship between components of the Cloud Server subsystem and the Open Software Platform, as well as between the Cloud Server subsystem and the Common subsystem in our concrete architecture. The Open Software subsystem has a bidirectional relationship with components of Common as well as the Cloud Server, and a one way relationship where components of the Open Software Platform depend on the Hardware Platform’s canbus driver components. The Hardware Platform has a one-way dependency on components of Common.

In summary, all three top-level subsystems, Cloud Server, Open Software Platform, and Hardware Platform, depend on components of the Common subsystem. Common has dependencies in Cloud Server and Open Software Platform. Hardware Platform has dependencies in Common, and Software Platform has dependencies in Hardware Platform.

The Cloud Server subsystem in our concrete architecture contains components of the Navigation subsystem, and provides map information from the HDMap module to the Open Software Platform subsystem (Navigation subsystems are contained in multiple top-level subsystems). Various components of the Open Software Platform query information from the hdmap component, (according to the Apollo 5.5 Software Architecture, instead of publishing and subscribing messages, the hdmap component “frequently functions as query engine support to provide ad-hoc structured information regarding the roads” [5]). The planning, perception, task_manager, prediction, User Interaction, and Routing (component of Open Software/Navigation) all have dependencies upon the hdmap component of Cloud Server. This makes up the majority of the interactions between Open Software Platform and Cloud Server. The only bidirectional dependency between Open Software Platform (OSP) and Cloud Server (CS) is with OSP/planning, which plans the trajectory of the vehicle, CS/Navigation/map depends on flags set in OSP/planning. OSP does not have a direct dependency upon the Hardware Platform subsystem, but it does have a bi-directional dependency relationship on components of the Common subsystem. The utility component of the hdmap subscribes to the storytelling module of common (the storytelling module of common can be subscribed to by all other modules, and manages complex scenarios that require the involvement of multiple modules). The CS subscribes to modules of Common for information on the vehicle state and records from the Common/monitor_log components, which are used to update the vehicle’s position for Navigation.

The Open Software Platform subsystem (OSP) is the largest subsystem of our concrete architecture. It contains components whose purpose is to sense and interpret the environment around the autonomous vehicle. The most important dependency that the OSP has on the Hardware Platform subsystem is on Hardware Platform/Drivers/canbus, where information on the vehicle’s chassis is passed from the Hardware Platform to the OSP. As discussed in the paragraph above, the OSP and the CS subsystems depend on one another for information about the map to manage navigation-related services. The majority of the OSP’s dependencies are between itself and the Common subsystem are subscriptions from the various components of the OSP to Common components such as vehicle status, as well as important inclusion relationships such as Common/common/math. Common and OSP/Navigation share a bi-directional dependency, between Common/vehicle_state and Open Software Platform/Navigation/ localization.

The Hardware System contains components that describe the hardware of the vehicle itself and contains information from the vehicles’ sensors. The greatest number of dependencies in our concrete architecture exists between the OSP subsystem and the Hardware Platform subsystem, where OSP/canbus subscribes to information provided by Hardware Platform/Drivers/canbus/common, in particular byte.cc and byte.h. The CanBus is the interface that passes control commands to the vehicle hardware, so these dependencies represent the passing of control commands from the Hardware Platform from the OSP. Finally, the Hardware system subscribes to Common/common/monitor_log in its radar and gnss modules for Navigation purposes.

The Common subsystem contains components that are accessed by all other top-level subsystems. It contains the common sub-subsystem, which contains information used across the system, storytelling, which handles complex scenarios involving multiple modules, and cyber, which is Apollo’s runtime framework for autonomous driving.

REFLEXION ANALYSIS

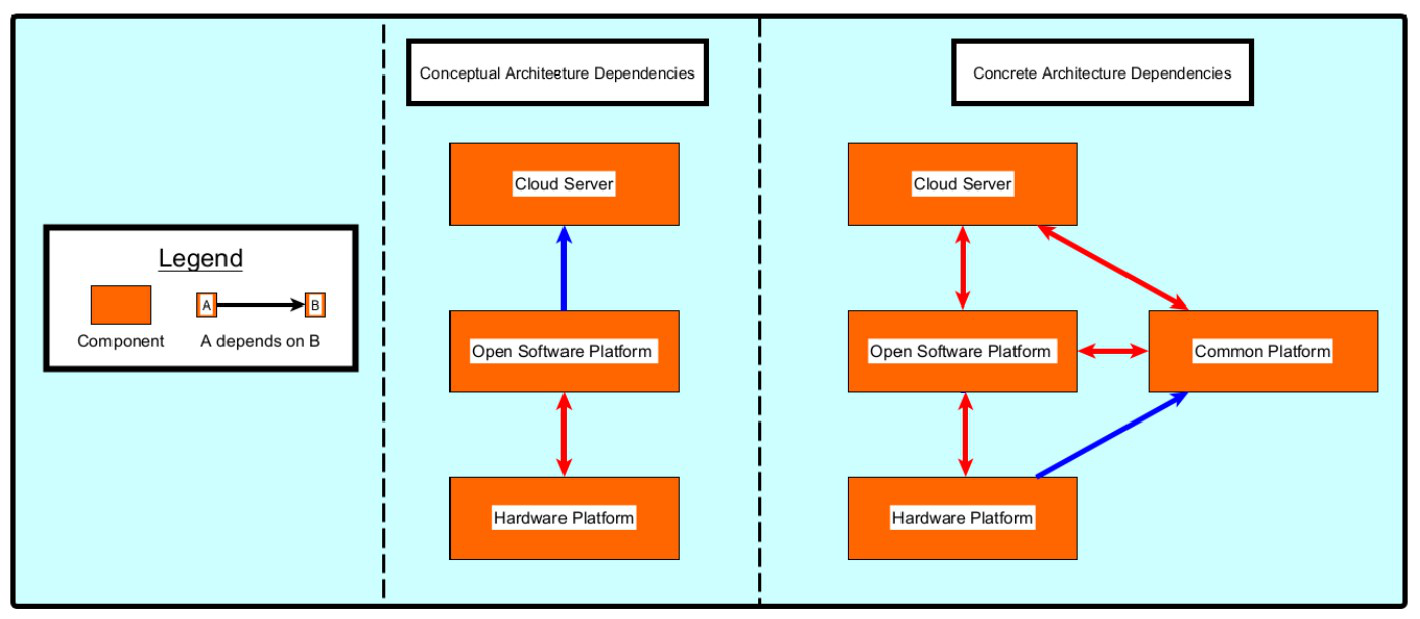

Figure 5: High-level dependencies of the conceptual and concrete architectures.

In this section, we will analyze the differences between our conceptual architecture and our concrete architecture, using Figure 5 for high-level analysis and Figure 4 for lower-level analysis.

Reflexion: The Common Subsystem

The first obvious difference between the two architectures is the existence of the Common Platform in the concrete architecture. This subsystem was not included in the conceptual architecture as we were unaware of the existence of the cyber, storytelling, tools, and common directories, which need to be accessed by multiple layers of the system. Note that the Common subsystem is used by almost every subcomponent, so we will only give one example of each type of connection.

Common ↔ Cloud Server

1. Cloud Server/Navigation/map → Common/common

Files used: box2d.h, line_segment2d.h, vec2d.h

Explanation: While approximating the path, path.h uses the LineSegment2d type from common to calculate the maximum error.

2. Common/storytelling → Cloud Server/Navigation/map

Files used: hdmap_util.h

Explanation: In close_to_junction_teller.cc, map information is used to get information on stop signs, yield signs, crosswalks, etc, which is crucial for allowing the Storyteller module to go through complex scenarios. For example, from the name of the file/main function CloseToJunctionTeller, it appears that Apollo Auto is creating a story to test functionality for detecting and operating at junctions.

Common ↔ Open Software Platform

1. Open Software Platform/planning → Common/common

Files used: util.h, pnc_point.pb.h, vehicle_state_provider.h

Explanation: When Planning enforces traffic rules at a crosswalk, it utilizes the mathematical functions available in common such as Vec2D to, for example, calculate the velocity of incoming pedestrians and stop the vehicle if they are headed in the vehicle’s direction.

2. Common/common → Open Software Platform/Navigation/localization

Files used: localization_gflags.h

Explanation: vehicle_state_provider.cc provides the current status of the vehicle state, a piece of data that would be useful to a variety of modules to easily access (and thus should go in a “Common” subsystem). However, localization is needed to do this, so the dependency is necessary. The second dependency comes from a testing file for the vehicle state provider.

Hardware Platform → Common

1. Hardware Platform/Drivers/Navigation/lidar → Common/common

Files used: adapter_gflags.h, latency_recorder.h

Explanation: compensator_component.cc uses a latency recorder from latency_recorder.h to log latency records when compensating for motion with the LiDAR.

Reflexion: The Cloud Server and the Open Software Platform

Another unexpected dependency in the concrete architecture is the fact that the Cloud Server also depends on the Open Software Platform. In our conceptual architecture, we only anticipated that the Open Software Platform would depend on the Cloud Server for making map queries and gaining traffic information, and that the Cloud Server would operate independently to provide these services. However, the Cloud Server needs to query Planning and Routing for information from the Open Software Platform on the vehicle’s state to determine the next planning and routing options. We also neglected to indicate some of the dependencies in the other direction. All are described in detail, below.

Cloud Server ↔ Open Software Platform

1. Cloud/Navigation/map ↔ Open Software Platform/planning

Files used: planning_gflags.h

Explanation: pnc_map.cc uses planning “flags” from planning_gflags.h when updating the vehicle state in conjunction with information on nearby routing waypoints to determine if the vehicle’s next move needs to be re-planned. This is likely to deal with situations in which the vehicle goes off the map or disconnects and needs to reorient itself.

2. Cloud/Navigation/map → Open Software Platform/Navigation/routing

Files used: routing_gflags.h

Explanation: pnc_map.cc uses routing “flags” from routing_gflags.h to update the routing range, find the next routing waypoint from the vehicle’s current position, validate the routing chosen, and more, all of which are crucial to keeping the vehicle on track.

3. Open Software Platform/Navigation/routing → Cloud Server/Navigation/map

Files used: hdmpa_util.h, opendrive_adapter.h

Explanation: Routing includes the same header file. Looking at the commit history, we can see that this is needed to optimize the prototype of the map.

4. Open Software Platform/prediction → Cloud Server/Navigation/map

Files used: hdmap_common.h, hdmap_util.h, path.h

Explanation: The prediction module uses the map to retrieve information on the vehicle’s surroundings and make decisions surrounding issues such as lane changing.

5. Open Software Platform/perception → Cloud/Navigation/map

Files used: hdmap.h, hdmap_common.h, hdmap_util.h

Explanation: Perception uses HDMapUtil as input and uses it as a base map to build off of using additional perception functionality.

6. Open Software Platform/task_manager → Cloud Server/Navigation/map

Files used: hdmap.h, hdmap_common.h, hdmap_util.h

Explanation: The task manager needs to access the map in the Cloud Server to get info on parking spaces.

7. Open Software Platform/User Interaction/dreamview → Cloud Server/Navigation/map

Files used: hdmap_util.h

Explanation: Dreamview needs to access the map in the Cloud Server to get waypoints that it can use in calculations to update the simulated world.

Reflexion: Other Unexpected Dependencies with the Open Software Platform

Although our conceptual architecture includes several interdependencies within the Open Software Platform, there were a few that we missed - mostly in relation to the subsystems within Navigation. For example, we anticipated Planning’s dependency on Control but did not expect its connections to the subsystems within the Navigation directory or its bidirectional dependency on Prediction. We also did not include Control’s dependency on the Localization subsystem within Navigation. See detailed explanations of these dependencies below.

1. Open Software Platform/planning → Open Software Platform/Navigation/routing

File used: routing_gflags.h

Explanation: Planning depends on routing to make decisions about changing lanes and retrieve information about the vehicle’s current state.

2. Open Software Platform/planning → Open Software Platform/Navigation/ localization

Files used: localization_gflags.h

Explanation: Planning takes localization as an input and uses it to make decisions about possible obstacles and pathing.

3. Open Software Platform/planning → Open Software Platform/User Interaction/dreamview

Files used: map_service.h

Explanation: Planning uses the map service from the dreamview module in its decision making surrounding open space available to the vehicle.

4. Open Software Platform/planning → Open Software Platform/prediction

Files used: net_model.h, data_extraction.h

Explanation: Planning uses prediction to include information on possible obstacles it will need to avoid in its planning, and for autotuning purposes.

5. Open Software Platform/control → Open Software Platform/Navigation/localization

Files used: localization_gflags.h

Explanation: Control uses localization to get the coordinates of the vehicle’s position which it uses in its algorithms to ensure smooth driving.

Reflexion: Other Unexpected Dependencies with the Hardware Platform

1. Open Software Platform/canbus → Hardware Platform/Drivers/canbus

Files used: byte.h

Explanation: The CanBus software depends on the CanBus driver to access a Byte class, which allows for easy translation to bytes when calculating brake commands.

INNER SUBSYSTEM: LOCALIZATION

CONCEPTUAL ARCHITECTURE

We recognized in our conceptual architecture that the goal of the localization subsystem is to find the vehicle’s exact location. Our conceptual view of the localization subsystem was very high level. We noted major interactions of the subsystem with the rest of the system, but neglected to analyze the inner architecture [5]. As this subsystem is in charge of estimating localization, and most of its input is from other subsystems, the conceptual architecture is very simple. It would be a simple pipe and filter consisting of a “Localization Calculator” component filter, which takes the input from subsystems Localization is subscribed to, and then sends it to a “Common” component filter which publishes it to other subsystems. See Figure 6 for the conceptual architecture of the localization subsystem.

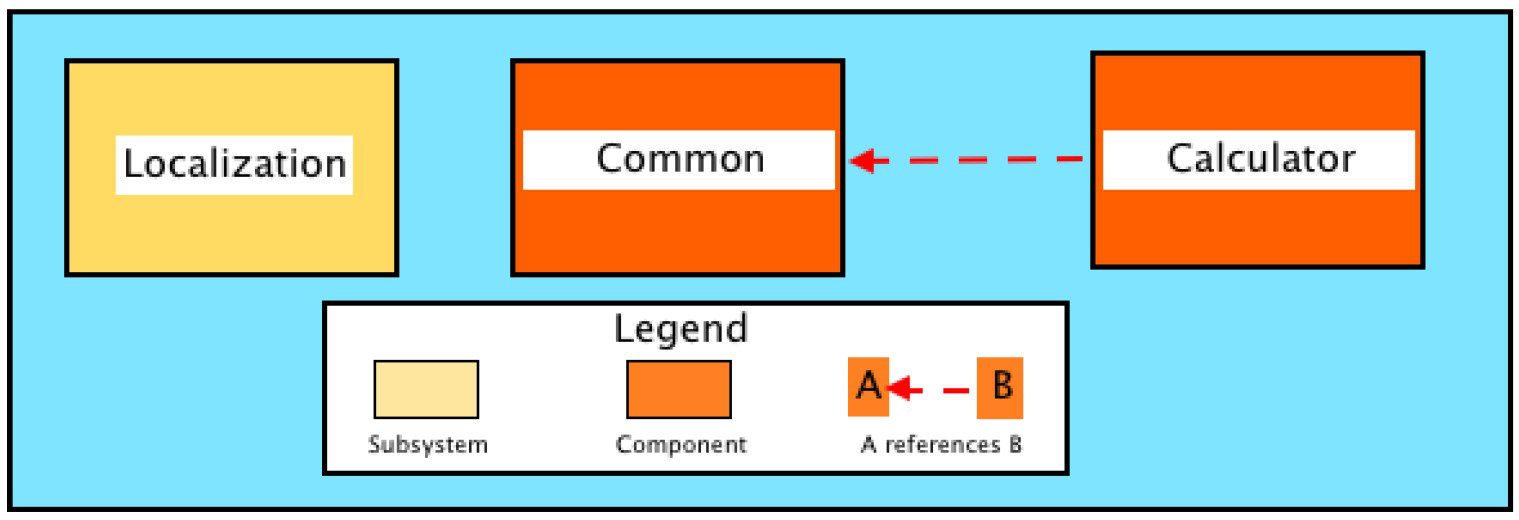

Figure 6: Conceptual Architecture of Localization Subsystem.

CONCRETE ARCHITECTURE

Overview

Deriving the concrete architecture using Understand and GitHub unveiled lots of information and realizations about the localization subsystem. We discovered that the subsystem has two independent methods of calculating localization - OnTimer (rtk) and Multiple SensorFusion (msf). We found that our chosen subsystem has a high amount of interaction with the other subsystems, and not a lot of interaction between its own components [5]. This being said, the conceptual architecture described above would not thoroughly represent the subsystem. To explain the concrete inner architecture, the main components must first be described.

The Two Methods of Localization - The Main Components of The Subsystem

OnTimer (rtk) is a method of localization based in real-time. This method utilizes data from the GPS and IMU as input, which are found in the “open software system” layer. OnTimer takes advantage of the rtk directory found within the localization subsystem. This directory consists of files that execute the real time kinematics and subsequently provide a very accurate location [6]. The multiple sensor fusion (msf) method uses the GPS, IMU, and LiDAR data as inputs, and estimates a location [7]. This method takes advantage of the msf directory, which contains files that execute msf localization. There are additional directories consisting of files which send the GPS, IMU, and LiDAR data to the msf calculations. There is an additional method which isn’t fully developed yet according to the github, called ndt. The ndt directory would have similar functionality to the rtk and msf directories, meaning that it computes a location estimate [8].

Conclusions of Concrete Subsystem and Interactions

The understand file of the concrete architecture depicts the dependencies of the localization subsystem (see Figure 7). It demonstrates that within the localization subsystem the Common component is in charge of connecting the dots. The components rtk and msf (and ndt if it were fully functional) independently compute localization estimates, and send them to the Common component. Due to the independent nature of the subsystem’s components, it resembles a pipe and filter style. The localization method components (rtk, msf, and ndt) and the Common component would be the filters connected by pipes that determine where they send and get their information. A diagram representing the architecture can be seen in Figure 8.

Figure 7: Interactions Between Components Within the Localization Subsystem.

Figure 8: Concrete Architecture Within the Localization Subsystem.

LOCALIZATION SUBSYSTEM REFLEXION ANALYSIS

Our initial assessment of the Localization subsystem seemed to have missed a couple dependencies that are integral to the system. These divergences between the conceptual and concrete architectures have been highlighted below.

‘Localization Calculation’ Component

This was a component we included in the conceptual architecture that does not actually exist in the system on reflection. While we had initially included it to handle localization related calculations, we were able to see that 3 independent components- namely msf, rtk, and ndt- took over this role instead. This is partly the reason for some other divergences that follow as well.

Localization ↔ Drivers

Although we anticipated that the Driver would be listening to the LocalizationEstimate from the Localization subsystem, we failed to observe that this subsystem would then be subscribed back for the FnssBestPose, PointCloud, CorrectedImu, InsStat, along with RawData. This is necessary for the Driver to be able to relay this for control and management to the lower-level linked components. It’s therefore justified.

Localization ← Map

The Map requires the LocalizationEstimate from the Localization subsystem as well in order to constantly update the current location, so this is justified and something we overlooked in our conceptual architecture.

Localization ← Prediction

The Prediction component also depends on the LocalizationEstimate from this subsystem in order to factor into calculations for any future actions. This dependency is therefore logical and justified.

Localization ← Perception

The LocalizationEstimate needs to be relayed to the Perception component as well, for being able to properly map the car to its external surroundings. We had already correctly identified this in our initial conceptual architecture.

Localization ← Planning

The Planning component listens for the LocalizationEstimate as well. Similar to the Perception component, this is necessary to factor into calculations for planning any next routing moves by the system, and had been overlooked by us initially but is justified.

Localization ← Task Manager

The Localization component also has the Task Manager subscribed to it for the LocalizationEstimate as well. This is in place to be able to then help with routing, which is clearly justified.

SEQUENCE DIAGRAMS

Overview

We modeled sequence diagrams for the same use cases used in our conceptual architecture report in order to see how the real execution differs from our conceptual understanding.

Use Case 1: Turning left when pedestrian runs into street to cross the road

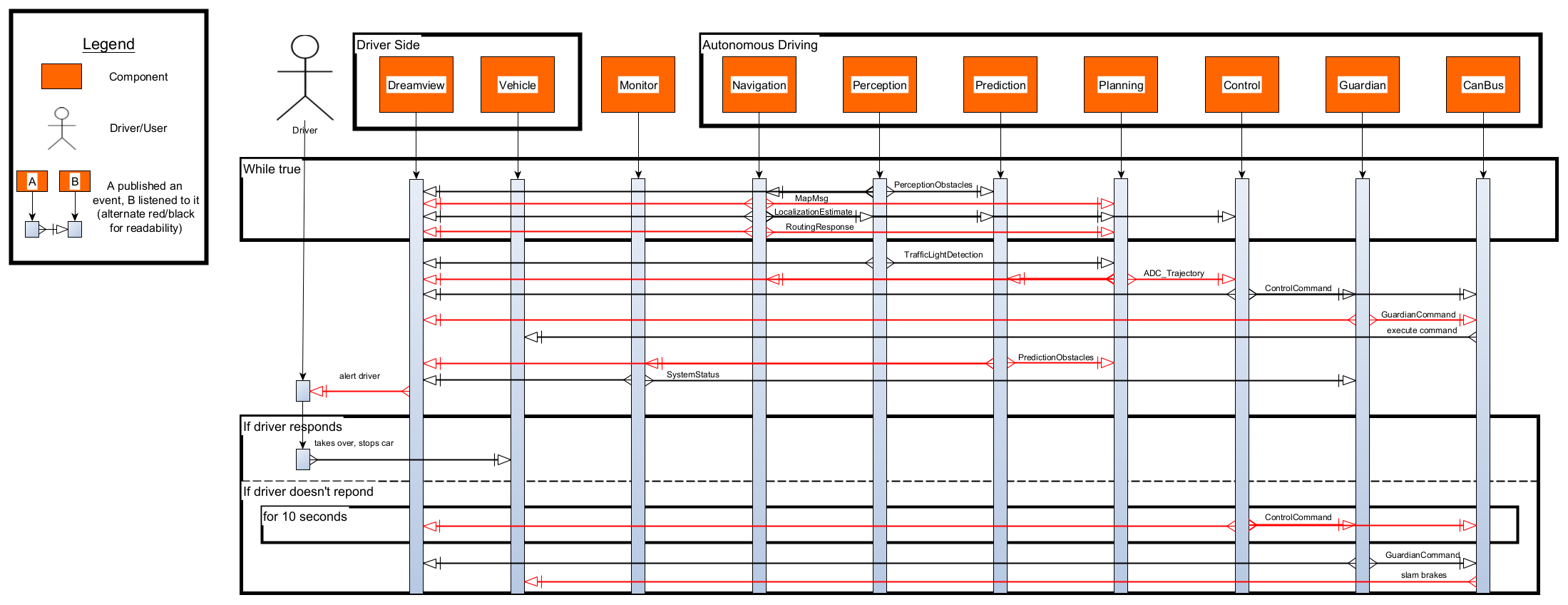

Figure 9: Sequence Diagram for Use Case 1.

The top of the diagram shows the constant events being subscribed to regarding surroundings. Perception is tracking obstacles, and Navigation is tracking position and routing and both are sending these off to their listeners. Once the Perception component sees that the light has turned green, the Planning component is alerted through Perception’s TrafficLightDetection event which tracks traffic lights. Planning generates a plan and sends off an ADC_trajectory event, which Control listens for and formulates into commands, sending it off as a ControlCommand event. The Guardian evaluates the command and sends an all-clear message in the form of a GuardianCommand.

Once CanBus listens to the GuardianCommand, it executes the command through the vehicle, using the CanBus driver to start a left turn through the intersection. While the vehicle is performing the turn, Prediction sends off a PredictionObstacles event warning of a potential collision with a pedestrian determined using the constant updates provided by Perception, as listed at the top of the diagram. Once Monitor is alerted of this suspected collision, Monitor relays the information in the form of a SystemStatus event to Guardian and the Dreamview component, which in turn displays the concern to the driver.

Once the driver is alerted, either they will take over and stop the vehicle, or the guardian prevents further commands from going through, allowing the car to slow down, until 10 seconds have passed without the driver intervening. If 10 seconds have passed, Guardian will alert the CanBus to perform an emergency stop, causing the vehicle to brake hard and come to a stop.

This diagram is similar to our conceptual version, with some slight changes. Such as multiple components listening to the same event, allowing for more agency and concurrency across components. As well, there are subtle differences such as Planning listening directly to Perception for updates rather than getting its updates from Prediction.

Use Case 2: Getting a flat tire while on the road

Figure 10: Sequence Diagram for Use Case 2.

For the second use case, the scenario begins with the vehicle in motion. Throughout the execution of the sequence components are continually being updated as before, with navigating, planning and control events being sent out. The top of the sequence diagram shows the computations continually being performed, with new commands constantly being generated and sent to the CanBus and the Guardian for approval.

Suddenly one of the tires pops and the CanBus relays this to the monitor through one of its ChassisDetails events, informing it of the hardware error. The monitor subsequently alerts both the Guardian and the Dreamview which in turn alerts the driver. From this point either the driver will respond and bring the vehicle to a safe stop, or the Guardian will take over. If the driver fails to respond, the Guardian will attempt to bring the car to a safe stop. The Guardian receives information from the Monitor to learn about its surroundings and if the sensors are functioning and there are no obstacles, it alerts the CanBus to bring the vehicle to a slow stop. Otherwise if it can’t confirm that a slow stop is possible, it will alert the CanBus to perform an emergency stop. Again, the main difference with this sequence diagram compared to our conceptual version is the increased concurrency provided by multiple subscriptions to the events. Some of the interactions are slightly different as covered in other parts of the report, but for the most part, the logic underlying the execution is essentially the same.

CONCLUSION

SUMMARY OF FINDINGS

Through the report, our team was able to get a deeper understanding of Apollo’s concrete framework and the rationale behind many design decisions that would have otherwise remained unclear. We were able to identify the 4 main subsystems: the Cloud Server, the Open Software Platform, the Hardware Platform and the Common subsystem. The last of which we had overlooked in our conceptual perspective. Our familiarity of the Understand software was able to grow in parallel and through the use of it we were able to find the missing ‘cyber’ directory, and the Common, Storytelling, Task Manager, and Tools modules as well.

LIMITATIONS AND LESSONS LEARNED

There are only a few limitations to the architecture Apollo Auto uses. For instance, using Publish-Subscribe with multiple components listening to the same events and working simultaneously introduces race condition concerns, so they must consider that when making changes. The open-source nature of the project also introduces unique challenges of having to be very selective and rigorous in choosing what commits to pull, since it isn't just a dedicated, trusted team working on it all together. Finally, it is dangerous having a "common" grouping in the architecture since it is not well defined and developers might be tempted to throw anything in there, even if it would fit better in other places.

Although there was a clean split in the source code from ‘module’ and ‘cyber’ in order to avoid bidirectional dependencies that can cause tight coupling, we learned that some connections between subsystems may prove necessary if there are solid justifications. In addition, we also learned of the importance of factoring in concurrency and communication in our Use Cases even if they don’t seem blatantly obvious. Finally, we learned that our initial conceptual architecture attempt was not detailed enough, and now know to focus more on subsystem interactions in the future.

REFERENCES

[1] “Apollo Open Platform,” Apollo Auto, 2020. [Online]. Available: https://apollo.auto/developer.html. [Accessed: 21-Mar-2022].

[2] ApolloAuto, “Common - Module,” GitHub, 01-Sep-2020. [Online]. Available: https://github.com/ApolloAuto/apollo/blob/master/modules/common/README.md. [Accessed: 21-Mar-2022].

[3] ApolloAuto, “Storytelling,” GitHub, 15-Mar-2022. [Online]. Available: https://github.com/ApolloAuto/apollo/tree/master/modules/storytelling. [Accessed: 21-Mar-2022].

[4] B. Adams, “Module 3: Architecture Styles,” Queen’s University, 2022.

[5] ApolloAuto, “Apollo 5.5 Software Architecture,” GitHub, 03-Jan-2020. [Online]. Available: https://github.com/ApolloAuto/apollo/blob/master/docs/specs/Apollo_5.5_Software_Architecture.md. [Accessed: 21-Mar-2022].

[6] G. Wan, X. Yang, R. Cai, H. Li, Y. Zhou, H. Wang, and S. Song, “Robust and precise vehicle localization based on multi-sensor fusion in diverse city scenes,” 2018 IEEE International Conference on Robotics and Automation (ICRA), 2018.

[7] Z. Wang, Y. Wu, and Q. Niu, “Multi-sensor fusion in Automated Driving: A survey,” IEEE Xplore, 2018. [Online]. Available: https://ieeexplore.ieee.org/document/8943388. [Accessed: 21-Mar-2022].

[8] ApolloAuto, “Localization,” GitHub, 01-Jul-2021. [Online]. Available: https://github.com/ApolloAuto/apollo/tree/master/modules/localization. [Accessed: 21-Mar-2022].

Assignment 1

Conceptual Architecture

Presentation

Click here to view presentation.

Report

ABSTRACT

Uncovering the conceptual architecture of a system is of interest in order to learn how developers tackle design problems. When deconstructing an existing system, one can gain insight into how development, data flow, testing, and reusability can maximize efficiency and minimize “spaghetti code” that is difficult to follow. The aim is not to look at source code or implementation details but to extract an architecture that follows best practices and suits the domain. This report concerns itself with the conceptual architecture of Apollo Auto, a system in continuous development created with the aim of becoming a safe platform for autonomous driving.

We strove to answer salient questions about software design. For example, what architecture styles best suit the overall architecture for the domain of self-driving vehicles? How would a system for self-driving cars be designed so that it could work for most vehicles, without redesign? What is the best way to design data flow so that the vehicle could react quickly in emergency situations? How would an autonomous vehicle system use concurrency to maximize resource usage? We studied available documentation on the conceptual architecture of Apollo Auto as well as descriptions of its features along with research on the ideal architecture for autonomous vehicles to answer these questions and more.

In short, we discovered that Apollo Auto was intelligently designed, with layers to describe the logical division of components, hardware and software decoupled for maximum reuse, an event-handling system for data flow, and a framework for parallel computing. The documentation process was an excellent exercise in understanding software efficiency and designing for a specific domain while staying true to design practices (such as minimized cross-interactions) that benefit all systems.

INTRODUCTION AND OVERVIEW

Apollo Auto has made incredible advancements in autonomous driving technology. So far, the system has been applied to cars, buses, and taxis. The autonomous cars can park themselves, reduce the time spent waiting in traffic by up to 30% by using traffic flow to minimize the amount of red lights, share location information with other cars, use sensors of all kinds to accurately sense its environment, and more (“Smart Transportation Solution”). Apollo Auto boasted that by the end of 2020, the software would be able to handle highways and typical urban streets (“Apollo's Mission”).

The purpose of this report was to extract the conceptual architecture of Apollo Auto, referring to reference architectures on autonomous driving systems and methods of extracting architectures from documentation. The report uses an “inverted triangle” approach, beginning with a description of the high-level architecture styles that characterize the system, then focusing in on architecture styles that define subsystems and data flow. First, the derivation process of the overall conceptual process is described, along with styles that were considered but ultimately swapped out. Next, the final design for the conceptual process is detailed, along with diagrams, descriptions of crucial components, their general interactions, and external interfaces used. What follows is a deep dive into the evolution of the system, the data flow between parts, and how concurrency operates within the system. Finally, the flow of usage is demonstrated with sequence diagrams for salient use cases and the division of responsibilities among programmers.

Throughout the documentation process, we discovered that autonomous driving systems must carefully consider both the software and hardware components in its design. Optimally, the software and hardware components can be cleanly split into separately functioning layers. Additionally, in order for the vehicle to stay up-to-date on traffic information and navigate its environment safely, a Client-Server architecture style that describes a cloud that multiple vehicles could connect to is ideal. The Publish-Subscribe style also enables the vehicles to react to events quickly without wasting processing power, which is relevant to data flow. Finally, the Process-Control style describes the methodology for ensuring that certain vehicle parameters stay within a safe balance.

We also discovered that it is important to carefully consider the documentation sources from which to extract a conceptual architecture. Even documentation from certified developers that appears to be conceptual may be too closely coupled with concrete implementation, and may not reflect the designer’s initial ideas. We found it useful to refer to higher-level descriptions of the Apollo Auto system, as well as reference architecture that abstracts the most crucial parts of the domain-specific design.

In short, we believe to have developed an accurate design that reflects the wishes of Apollo Auto stakeholders and stays true to good practices for intelligent autonomous vehicle systems.

CONCEPTUAL ARCHITECTURE

DERIVATION AND HIGH-LEVEL OVERVIEW

Derivation Process

To derive the conceptual architecture, we first compiled a multitude of online resources that described Apollo Auto’s architecture and how the system functioned. These included conceptual documentation available from the company’s Github, reference architecture for self-driving cars, Apollo Auto’s website, video demos, and various articles that described the technical advancements that the company has made.

The reference architecture for autonomous vehicles by Behere and Törngren was an excellent resource when determining the most modular way to describe an autonomous driving architecture. When deriving our final conceptual architecture, we referred to this architecture as it claimed to be successful for general autonomous vehicle implementations. Our goal was to “instantiate” Behere and Törngren’s proposed structure with conceptual information available about Apollo Auto in order to derive a conceptual architecture that was proven to be secure and efficient to test and develop.

Other Styles Considered

First, let us discuss styles that we considered but that were ultimately substituted for better options. These styles include Pipe and Filter and Interpreter. First, Pipe and Filter was considered because of how data appears to flow through the system. When examining Apollo Auto’s documentation, it was clear that information is constantly flowing from the cloud to the software to the hardware to the user interface and vice versa, along with calculations being done along the way. It was initially thought that data could be traveling through pipes with incremental filtering along the way, with the rationale that perhaps urgent data could flow to the vehicle quicker if calculation was done incrementally, saving time in crucial emergency situations. However, this potential advantage is overshadowed by the fact autonomous driving systems are highly interactive and each component may need to notify another at a moment’s notice. This is not descriptive of a Pipe and Filter style, which does not use an “event” system and whose components are not deeply aware of what the other components do.

Next, Interpreter Style was considered, the rationale being that the language for manipulating vehicle components might not be directly available, as commands may have to be interpreted differently for different types of vehicles. However, a journal paper on autonomous driving systems states: “The vehicle contains a network of electronic control units (ECUs) controlling the basic vehicle propulsion (lateral and longitudinal acceleration, braking). The vehicle manufacturer usually builds a ‘gateway’ that allows the experimenters to send a limited set of commands to the ECUs in the vehicle network” (Behere and Törngren 6). Thus, most vehicle manufacturers provide functionality for developer input for direct access to vehicle hardware, eliminating the need for the software to have a deep understanding of the vehicle-specific implementation (more on this later).

The Final Conceptual Architecture

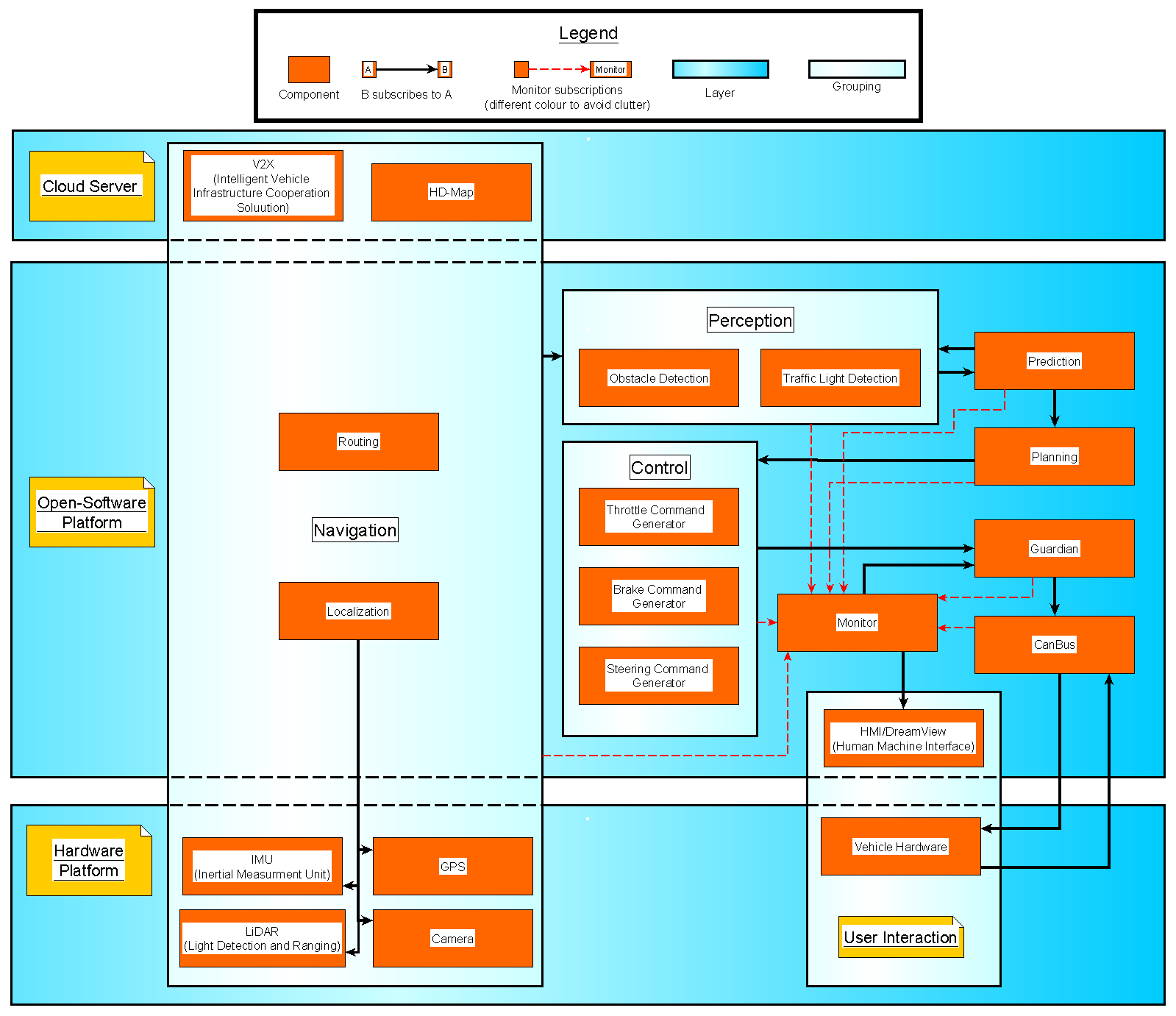

Figure 1 : Our final conceptual architecture

In order of decreasing abstraction, the architectural styles used for the final conceptual architecture were Client-Server, Layered, Publish-Subscribe, and Process-Control (see the Data Dictionary for full definitions of these architectures). An overview of the system’s components and their interactions will now be described, referencing these systems as necessary.

To begin, the Cloud Service system, which consists of components crucial to autonomous driving technology, uses a Client-Server system to interact with the vehicle and keep it safe. Firstly, the HD-Map uses deep learning technology to create incredibly accurate maps of the vehicle’s surroundings that the vehicle’s software can query on the fly for navigation (“Apollo Open Platform”). Vehicles would also use the cloud in order to interact with each other and decrease the chance of collisions. Additionally, the V2X (Intelligent Vehicle Infrastructure Cooperation Solution) component utilizes the cloud to retrieve local traffic data in real time (“V2X: Intelligent Vehicle Infrastructure Cooperation Solution”).

Next, Apollo Auto uses the Layered architecture style in order to sort its components into logical tasks. This was derived by taking note that the components of an autonomous driving system should be partitioned into a layer for cognitive driving intelligence (the logic that determines how the car should operate) and a layer for the vehicle platform (the hardware of the vehicle itself). Upon looking at Apollo Auto’s documentation, the system follows this rule by partitioning the software and hardware subsystems:

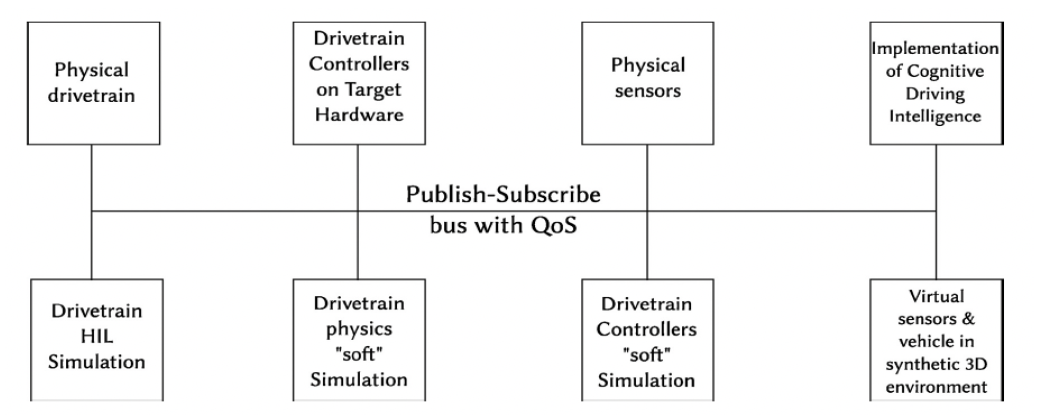

Figure 2 : Decoupling of the cognitive driving intelligence, the vehicle hardware platform, and the cloud shown in Apollo Auto’s architecture ("Apollo Open Platform")

As briefly previously mentioned, the decoupling of the cognitive driving intelligence and the vehicle platform is crucial to efficient development. The intelligence system does not have to know about platform-specific details and vice versa, allowing the software to easily be deployed to multiple vehicle types without too much re-programming. We must note, however, that such a decoupling assumes that the vehicle hardware has “abilities for keeping the platform stable and retaining basic self-protection measures which may include reactive control” (Behere and Törngren 7). However, the majority of high-end vehicles come with these abilities built-in, allowing for cleanly split layers in the general case. Additionally, the cloud system used by Apollo Auto can be seen as another layer that the software interacts with.

Before we look further within, let us describe the main modules present in Apollo Auto in order to get acquainted with the system. The Localization component makes use of the GPS, LiDAR (Light Detection and Ranging), Camera and IMU (Inertial Measurement Unit) components from the vehicle hardware to generate the vehicle’s exact location. The Perception component functions as the vehicle’s “eyes,” discerning obstacles and the status of traffic lights. Then, the Prediction component predicts the next move of each detected obstacle, and the Planning component calculates the future trajectory of the parent vehicle. The Control component translates the output from the Planning component into actionable commands for the vehicle's throttle, brakes, and wheel; these are then propagated to the vehicle hardware through the CanBus. The vehicle hardware contains the CPU, GPS, IMU, Camera, LiDAR, and multiple Radars that collect sensor input as data to make decisions from (“Apollo 5.5 Software Architecture”).

Publish-Subscribe is the intuitive choice for communication between these components. First, the system would ideally be applicable to multiple types of vehicles instead of being designed in a vehicle-dependent fashion. Designing a system that would have to be re-designed for each vehicle type would waste time and expenses. However, if we think of the autonomous driving system as a vehicle with a separate “conscious” system, we can avoid the issue by publishing events from the conscious system (i.e., planning and prediction) that the vehicle hardware can subscribe to and respond accordingly by altering its velocity. The autonomous driving system could be seen as a “plug-in” to the vehicle hardware, which Publish-Subscribe is designed for.

Additionally, Publish-Subscribe is ideal for a system that is designed to react quickly to its environment without using expensive busy-waiting that would take up processing power. The architecture style allows components in the system to be notified of events that could happen at any moment. For example, the Perception component could detect an unexpected swerving vehicle, Prediction catches the event and detects their next move, Planning in turn decides the vehicle’s trajectory, which notifies Control then the CanBus, which handles the action of avoiding the other vehicle.

Finally, Apollo Auto uses a Process-Control architecture style as the CanBus passes data from the vehicle hardware back to the software system (“Apollo 5.5 Software Architecture”). This Process-Control subsystem is likely used to “continuously learn and adjust the model parameters” (Behere and Törngren 9). This could be used to keep parameters such as vehicle speed and acceleration within a determined balance.

External Interfaces

Other modules for testing and error handling purposes interact with the whole system. Serviced by the vehicle’s Hardware Platform, the Open Vehicle Certificate Platform refers to the interface that connects the Apollo Auto autonomous driving system with the car itself, which is at the highest level of the system. (“Open Vehicle Certificate Platform”). The Human Machine Interface (HMI), or DreamView, is an Open Software component that allows drivers and developers to track and view the status of the autonomous vehicle in real time, updated by the Monitor. The Monitor component keeps tabs on the entire system and watches for errors, alerting the Guardian component if anything goes wrong, which would then intercede and take over (“Apollo 5.5 Software Architecture”). Finally, the Cloud Service layer described above is another example of an external interface.

EVOLUTION OF THE SYSTEM

The Apollo system continuously improves its prediction models by generating semantic maps that add data on road features to its deep learning network (“Apollo 5.0 Technical Deep Dive”). These maps help improve the accuracy of models like behavior predictions, path prediction, intersecting turning direction prediction, and more. A hierarchy of the models, ranked by the priority of obstacles, is maintained and passed through scene analysis, intent understanding, task prioritization and through the model scheduling framework (“Apollo 5.0 Technical Deep Dive”). The system then automatically selects a model that will result in the best prediction currently possible. This process allows the system’s models to evolve so prediction results can continuously improve.

As new road conditions and driving use cases are introduced to the system, the planning component evolves to become more modular and scenario specific. This means that each driving use case can be addressed individually so that scenario-specific issues can be reported and resolved independently from other scenarios (“Apollo 5.5 Software Architecture”). The planner also uses optimization algorithms to improve the distribution of speed and acceleration over time, and the Open Space Planner uses a model-based optimization scheme that represents obstacle shapes and road boundaries to utilize the vehicle dynamics model more efficiently (“Apollo Open Platform”). Similarly, AI techniques and ‘data-driven solutions’ allow the perception component to improve its detection and recognition capabilities over time (“Apollo Open Platform”). Overall, by continuously optimizing and updating its components, the system is able to evolve by improving its prediction models, perception, planning, and overall performance over time.

CONTROL AND DATA FLOW AMONG PARTS

Implicit Invocation and Process-Control Architecture for Data Flow

By comparing high-level summaries of the Apollo architecture to the reference architecture for autonomous driving by Sagar Behere and Martin Törngren, we can derive a possible conceptualization of the data flow throughout the software that is based on how Apollo appears to employ generalized components of autonomous driving software. The data flow among parts can be described primarily using Implicit Invocation and Process-Control architectural styles (see the Data Dictionary for full definitions of these architectures).

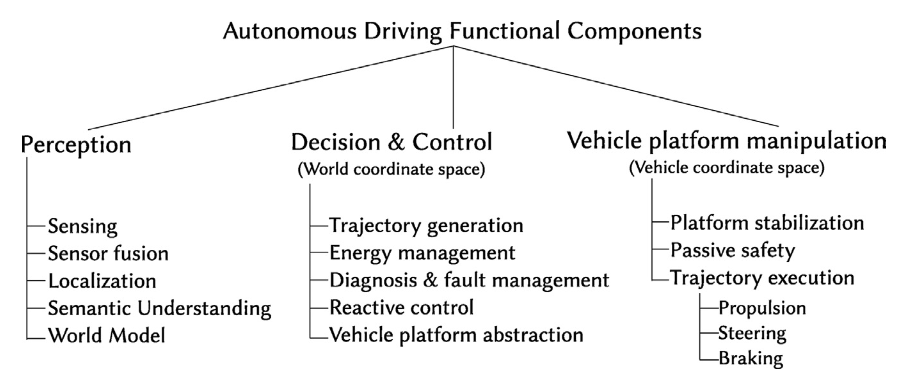

Figure 3 : Functional Architectural View (FAV) of an autonomous driving system, from the reference architecture paper

The reference FAV is split into three categories: Perception (interpreting the data gathered using sensors), Decision and Control (controlling the vehicle with respect to the vehicle’s environment) and Vehicle Performance Manipulation (sensing the control of the vehicle in order to achieve the desired motion).

In the functional reference architecture for autonomous driving by Sagar Behere and Martin Törngren, the “decision and control” category refers to the functional components involving the vehicle’s behavior and characteristics in the context of its external environment. The relationship between the components in these categories can be managed using Process-Control architecture. Data is provided by the elements of the “perception” category, and the elements of the “decision and control” can utilize this input to form reference values which will be maintained through the manipulation of variables in components of the “decision and control” and “vehicle platform manipulation” categories to control the vehicle.

By examining high level descriptions of Apollo’s open software platform on the software overview page ("Apollo Open Platform"), we can determine which of these modules belong to the three categories of the reference architecture and create a conceptual view of how information will flow between them.

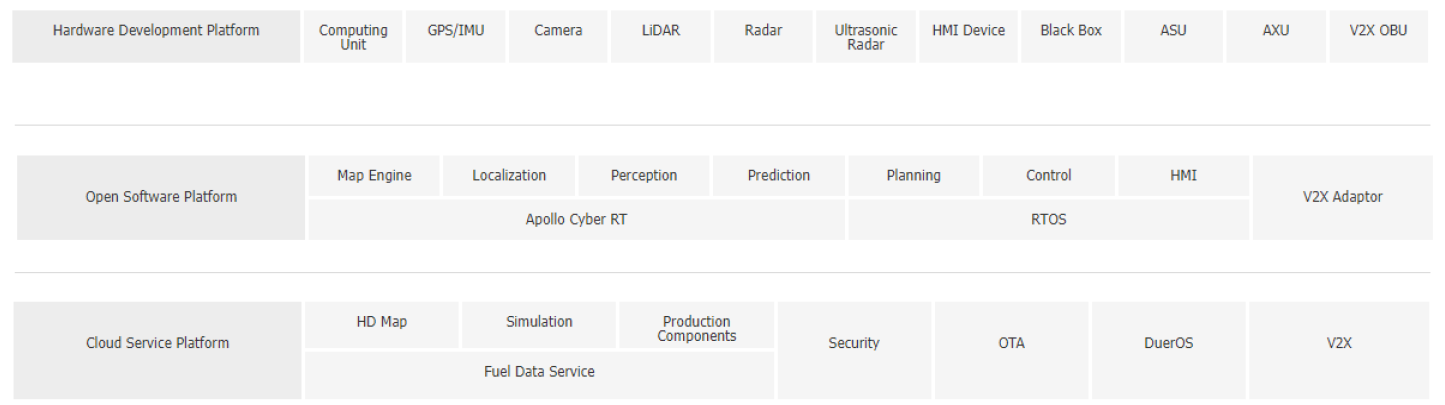

Figure 4 : Apollo Modules in the Open Software Platform

Apollo’s Perception module maps to the Perception category of the reference architecture. “The perception module identifies the world surrounding the autonomous vehicle.” (“Apollo 5.5 Software Architecture”)

The Prediction and Planning modules in Apollo deal with the ref. component of Trajectory generation. The trajectory generation component involves the generation of obstacle-free trajectories through the vehicle’s environment (in the world coordinate system) (Behere and Törngren 5). The Apollo Prediction module anticipates the motion of obstacles, the Routing module tells the vehicle how to reach its destination, and the Planning module plans the vehicle’s spatio-temporal trajectory. Each of these three components receive data from the HD Map (a module in the cloud service platform level of Apollo’s system), and the Localization Modules. “The localization module leverages various information sources such as GPS, LiDAR and IMU to estimate where the autonomous vehicle is located.” (“Apollo 5.5 Software Architecture”) The HD map provides structured information regarding roads.

There are several Apollo modules that provide data to the “control” components. The control components rely on data flow from modules such as the HD Map. Components that require information on roads should employ the Implicit Invocation (Publish-Subscribe) architectural style to subscribe to events broadcast by the HD map module to receive information about the environment of the vehicle. This will serve as input for components in the “control” and “manipulation” categories when calculating reference values to maintain during Process-Control processes.

Apollo’s control module subscribes to information broadcast by the trajectory generation components: “The control module executes the planned spatio-temporal trajectory by generating control commands such as throttle, brake, and steering.” (“Apollo 5.5 Software Architecture”). This maps to the Trajectory Execution component described in the reference architecture (the component which actually executes the trajectory generated by Decision and Control).

The control module publishes control information that the Guardian and CanBus modules use. The guardian is a safety module that intervenes in the event that the Monitor module detects a failure. The monitor Module surveils all the modules in the vehicle including hardware, and provides this data to the Guardian and Human-Machine Interface modules.

The CanBus module “is the interface that passes control commands to the vehicle hardware. It also passes chassis information to the software system” (“Apollo 5.5 Software Architecture”).

Finally, the result of this control information is sent to the Human-Machine Interface module. “Human Machine Interface or DreamView in Apollo is a module for viewing the status of the vehicle, testing other modules and controlling the functioning of the vehicle in real-time.”

In this mapping of a high level Apollo system modules to the reference architecture components we can trace the flow of data between related components, and see where control modules receive their inputs, and where the control instructions will be passed between modules.

CONCURRENCY

Concurrency is an incredibly important feature of countless systems, and the Apollo self driving system is no exception. When implemented well, tasks communicate, execute, and collaborate efficiently and effectively. Apollo uses it for large scale tasks like controlling speed and direction, or gathering, processing, and using data about the road ahead, or even performing all those tasks simultaneously. It also facilitates smaller scale tasks like adjusting the volume of the entertainment system, or changing the A.C. according to the user’s settings. In the very few reported cases where concurrency has been buggy in the Apollo system, it was found to have detrimental effects on the speed control (Garcia, et al. 7).

Concurrency is dependent on the operating system, or in this case the operating platform. Apollo uses a centralized and parallel computing model. Apollo’s operating platform has a central component, the Apollo Cyber RT framework, that collects information from the other components and directs them. It deals with each task it’s faced with through the use of a DAG (directed acyclic graph) dependency graph. A DAG graph uses an algorithm that takes into account the “priority, running time, and resource usage” (“Introduction to Baidu Apollo Cyber RT, Basic Concepts and Comparison with ROS”) of each task to determine how to direct each task. Then, a task is placed on a queue. Which queue and where is determined by a scheduler that takes into account resources, time, and urgency. When it is ready to execute, a task is “executed as an optimized thread” (“Apollo Cyber RT Framework”) - threads being a very lightweight, and computationally efficient process. At runtime, when the fused sensors start collecting data and incorporating user-tasks, all components work together with the Apollo Cyber RT Framework to manage and execute tasks in parallel, led by the fused sensor input (“Apollo Cyber RT Framework”).

Ultimately, Apollo’s conceptual architecture with regards to concurrency is grounded in their centralized and parallel computing model and strongly relies on the Apollo Cyber RT framework. It consists of multiple components, all linked together by a central component which uses a DAG graph to manage their tasks. Efficiency and parallelism is achieved through the use of the scheduler, lightweight threads, and resource management. This is depicted in figure X (“Apollo Cyber RT Framework”).

Figure 5 : Centralized and Parallel computing model using Cyber RT Framework [(“Apollo Cyber RT Framework”)](https://apollo.auto/cyber.html).

FLOW OF USAGE

Overview

To demonstrate our conceptual architecture we made sequence diagrams depicting two use cases. The sequence diagrams were made using the components from our conceptual architecture and serve to show how they interact in real settings. We tried to pick non-trivial use-cases which demonstrate how the architecture can handle tough situations.

Use Case 1: Turning left when pedestrian runs into street to cross the road

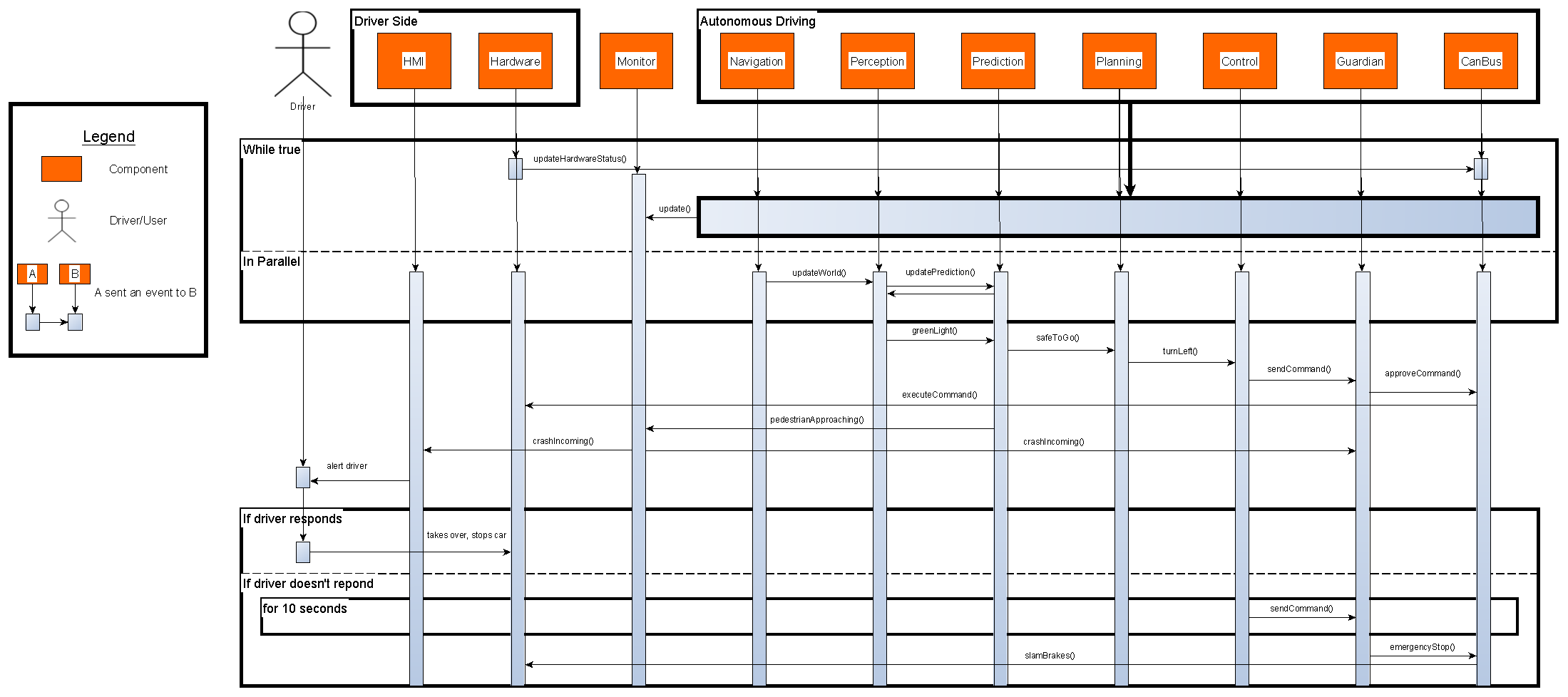

Figure 6 : Sequence Diagram for Use Case 1

For the first use case, the scenario begins with the vehicle stopped at a red light. Throughout the execution of the sequence CanBus is continuously being updated with the state of the hardware, and the Monitor is subsequently being updated with the status of all components of the system. As well, Perception is being updated by the Navigation component and the prediction of the world around it is continually being updated through data shared between Perception and Prediction. These continuous processes are made clear at the top of the sequence diagram.

Once the Perception component sees that the light has turned green, the Prediction component is alerted. After the Prediction component predicts that the way is clear, the Planning component is alerted and the Control component is called to generate commands for the vehicle. The commands are passed through Guardian, and CanBus relays the commands over to the hardware to initiate the left turn through the intersection. While the vehicle is performing the turn, during one of the updates to the Monitor, Prediction alerts the Monitor that a pedestrian is likely going to enter the road in front of them soon, based on current trajectories. (Learned through the constant updates to predictions of the world.) Once Monitor is alerted of this suspected collision, Monitor relays the information to Guardian and the HMI component, which in turn displays the concern to the driver.

Once the driver is alerted, either the driver will take over and bring the vehicle to a stop, or the guardian prevents further commands from going through, allowing the car to slow down, until 10 seconds have passed without the driver intervening. If 10 seconds have passed, Guardian will then alert the CanBus to perform an emergency stop, which will cause the vehicle to brake hard and come to a stop.

Use Case 2: Getting a flat tire while on the road

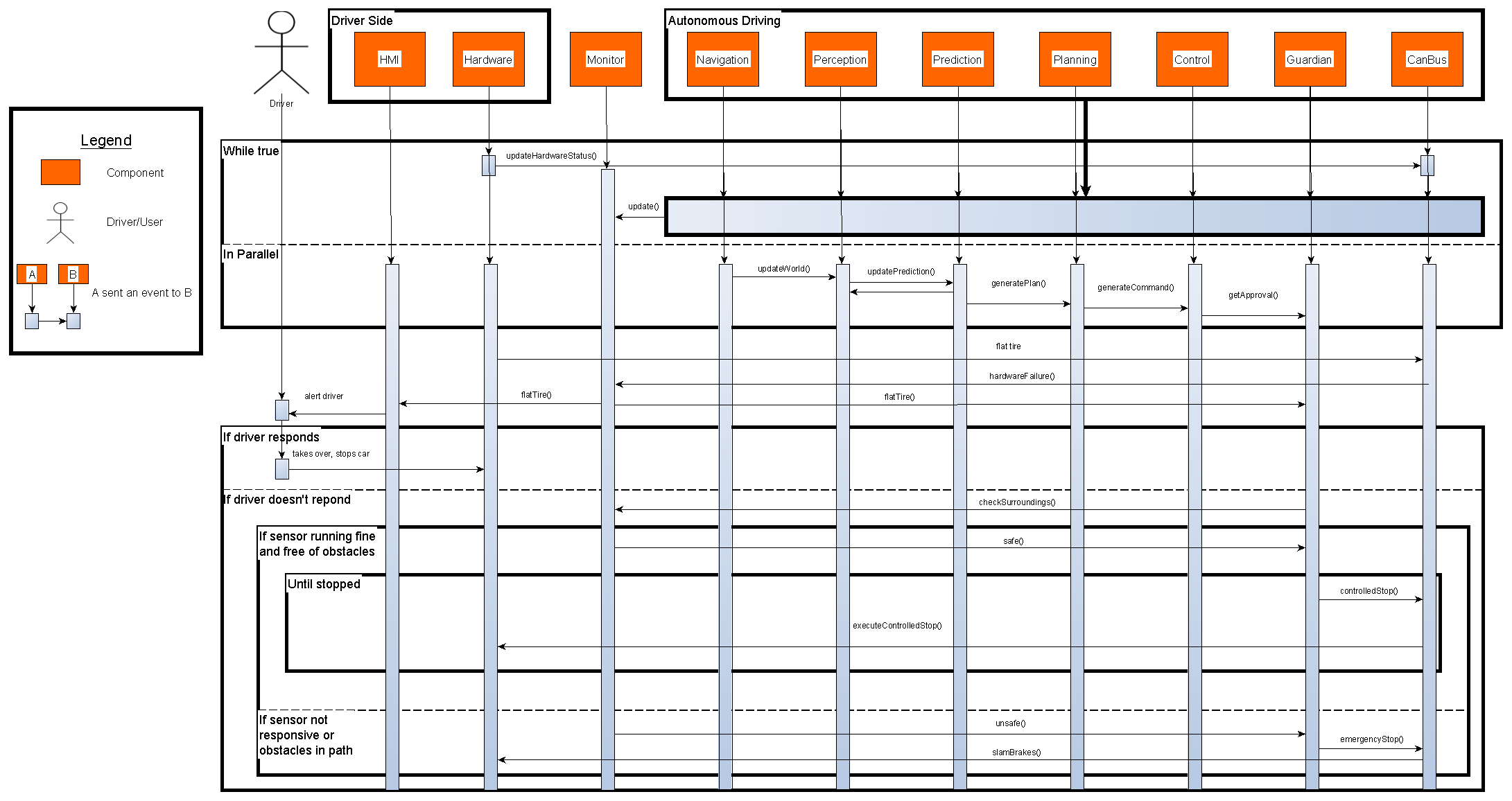

Figure 7 : Sequence Diagram for Use Case 2

For the second use case, the scenario begins with the vehicle in motion. Again throughout the execution of the sequence components are continually being updated as before. The top of the sequence diagram shows the computations continually being performed, with new commands constantly being generated and passed to the Guardian component for approval.

Suddenly one of the tires pops and CanBus is alerted through one of its constant hardware updates. The CanBus relays a message to the monitor informing it of the hardware error, and the monitor subsequently alerts both the Guardian and the HMI which in turn alerts the driver. From this point either the driver will respond and bring the vehicle to a safe stop, or the Guardian will take over. If the driver fails to respond, the Guardian will attempt to bring the car to a safe stop. The Guardian requests information from the Monitor to learn about its surroundings and if the sensors are functioning and there are no obstacles, it alerts the CanBus to bring the vehicle to a slow stop. Otherwise if it can’t confirm that a slow stop is possible, it will alert the CanBus to perform an emergency stop.

DIVISION OF RESPONSIBILITIES

The layered architecture style used acknowledges that the system’s technical implementation is broadly separated on the basis of the cognitive driving functions and the vehicle platform functions (Behere and Törngren 7). Within this however, the layered style allows for each of the layers to be implemented by a different team, and gives them the freedom of allowing them to make their own decisions regarding specifics like programming style, technology stacks and tools used.

Control engineers interestingly are allowed to have less coding-focused roles and more algorithmic focused concerns. They use tools that enable them to execute models without having to consider the minutiae like memory allocation. This allows them to test and verify their algorithms.

Embedded systems programmers would be employed in order to handle concerns related to program efficiency, and keeping it conservative and real-time. They are also concerned with the scheduling of tasks, interrupt handlers, input and output, etc. The control engineers and embedded systems programmers together usually implement the different components in the vehicle. Simultaneously, the cognitive driving intelligence related components would be implemented by computer scientists.

A major benefit of the architectural styles employed is that the different components (HMI, Hardware, Monitor, Navigation, Perception, Prediction, Planning, Control, Guardian, and CanBus) are enabled to be developed and appropriately tested independently. This strongly supports the notion of this being an open-source project, as otherwise, this can be harder to implement because of the independence and sheer number of developers that often have restricted communication with one another. The figure below outlines the broad setup that would be employable, and highlights the benefits in the developmental process of using the Publish-Subscribe style in such a context.

Figure 8 : Set up for division of responsibilities in the development and testing process, from the reference architecture paper

CONCLUSION

SUMMARY OF FINDINGS

In summary, our Apollo Auto architecture uses Client-Server, Layered, Publish-Subscribe, and Process-Control styles. This allows the system to maintain the vehicle’s safety, divide its components into logical tasks that are independent of one another, react quickly to the environment, and continuously evolve by learning and improving models. We also found that the Apollo system uses a centralized and parallel computing model to maintain concurrency which facilitates large and small scale tasks such as speed and volume control, respectively. By developing two use cases we were able to successfully demonstrate how our derived conceptual architecture would perform in real settings. Moving forwards, we will use our understanding of the conceptual architecture of Apollo to construct its concrete architecture.

LESSONS LEARNED

One of the biggest things we learned was coming to an understanding of what is conceptual versus concrete architecture. We realized that when we had begun our project, we had focused more on details relevant to the concrete architecture. We later had to revisit our initial ideas and change information in our report, referring more to other high-level documents and reference architecture. This understanding, however, will be helpful in the next assignment when we expand the conceptual architecture to derive the concrete details of the systems.

DATA DICTIONARY

ARCHITECTURE STYLES

Client-Server Architecture

A Client-Server architecture style is used when an application requires “distributed data and processing across a range of components” (Adams) The style partitions components into servers and clients. Servers remotely provide a service such as making a connection or making changes to a database to clients that require that service. Clients connect to servers through networks.

Layered Architecture

A Layered architecture style is used when the services of the system can be divided into hierarchies that mimic Client-Server style, as each layer of the hierarchy acts as the server to the layer above. Layered style is exceptional at highlighting the interaction between parts that carry out different tasks and operate within distinct subsystems. Similarly, layers can be partitioned into tiers that describe the physical divide between the parts of the system (Adams).

Implicit Invocation (Publish-Subscribe) Architecture

An Implicit Invocation architecture style is useful when components need to be notified of certain changes instantaneously, without “busy-waiting” (constantly polling) for those changes to happen. Instead, components would “subscribe” to events that other components choose to broadcast and would be notified when the event takes place. Subscribed and published events serve as input and output data to other components, respectively (Adams).

Process-Control Architecture

In elements of the system that involve maintaining reference values by the manipulation of variables, the Process-Control style will be used. The two main components of this style are the Process and the Controller. The Controller is given a controlled variable with a target that we want it to reach. All input variables are given to the Process, which manipulates the variables and feeds them back into the Controller (creating a “loop”). The Controller will then manipulate the variables appropriately in order to converge the target variable (Adams).

REFERENCES

Adams, Bram. Architecture Styles. Jan 2022, https://onq.queensu.ca/d2l/le/content/642417/viewContent/3751085/View. PowerPoint Presentation.

“Apollo Cyber RT Framework.” Apollo, Baidu, 2020, https://apollo.auto/cyber.html.

“Apollo Cyber Security.” Apollo, Baidu, 2020, https://apollo.auto/platform/security.html.

“Apollo Open Platform.” Apollo, Baidu, 2020, https://apollo.auto/developer.html.

“Apollo's Mission.” Youtube, Baidu, 6 Nov. 2017, https://www.youtube.com/watch?v=UmKSiFujJiw.

“Apollo 5.0 Technical Deep Dive.” Medium, Apollo Auto, 3 July 2019, https://medium.com/apollo-auto/apollo-5-0-technical-deep-dive-d41ac74a23f9.

“Apollo 5.5 Software Architecture.” GitHub, ApolloAuto, 3 Jan. 2020, https://github.com/ApolloAuto/apollo/blob/master/docs/specs/Apollo_5.5_Software_Architecture.md.

Behere, Sagar, and Martin Törngren. “A Functional Reference Architecture for Autonomous Driving.” Information and Software Technology, vol. 73, 2016, pp. 136–150., https://doi.org/10.1016/j.infsof.2015.12.008.

Garcia, Joshua, et al. “A Comprehensive Study of Autonomous Vehicle Bugs.” Proceedings of the ACM/IEEE 42nd International Conference on Software Engineering, 2020, https://doi.org/10.1145/3377811.3380397.

“Introduction to Baidu Apollo Cyber RT, Basic Concepts and Comparison with ROS.” Code World, 24 Jan. 2021, https://www.codetd.com/en/article/12255887.

“Open Vehicle Certificate Platform.” Apollo, Baidu, 2020, https://apollo.auto/vehicle/certificate_en.html.

“Smart Transportation Solution.” Apollo, Baidu, 2020, https://apollo.auto/index.html.

“V2X: Intelligent Vehicle Infrastructure Cooperation Solution.” Apollo, Baidu, 2020, https://apollo.auto/v2x/index.html.

Assignment 0

Related Links:

Overview:

Apollo Github Repository
Apollo Release Notes

Mission Statement:

Apollo's Mission

Demos:

Complete Urban Journey in a Baidu Apollo Autonomous Vehicle
Testing Apollo Auto - DreamView Demo

Group Policies:

Apollo Manifesto (Data Sharing Policies)
Apollo Governance Policies

Software Architecture:

Software Specifications Github Directory
Overview of software components
Apollo's Cyber Security
Apollo's Compatibility
Inside Apollo 6.0: A Road Towards Fully Driverless Technology (Report on Company Architecture)
RTI brings communications software to Baidu Apollo autonomous driving ecosystem (Information Sharing)

Articles and News:

Concordia researchers dig deep into the software powering self-driving cars
Building a self-driving car that people can trust
Apollo from a hardware perspective
Baidu May Reach Fully Autonomous Driving Faster than Tesla
Initiating the war on car information security, Baidu Apollo builds the highest level of security protection shield

Tutorials:

Official development/engineering tutorial
Self-Driving Car Fundamentals Introductory Video
Self-Driving Car Fundamentals Course
How To Build A Self Driving Car (Miniature)

Simulations:

SVL Simulator by LG
Apollo Game Engine Based Simulator

Textbooks:

Performance, Security, and Safety Requirements Testing for Smart Systems Through Systematic Software Analysis

Assignments:

• [x]   A0: Create a group of 6 (on OnQ) and group website
• [x]   A1: Document the conceptual architechture
• [x]   A2: Recover the concrete architechture and compare to the conceptual
• [x]   A3: Propose an enhancement, then propose and compare 2 designs / implementation plans

Project Mark Breakdown:

1. Submit group of 6 on onQ (otherwise random)

21 Jan

3. Create & share group website (+ group name)

4% 31 Jan

5. Conceptual Arch. Report [15p.] & Pres. [10'] (A1)

14+8% 18 Feb

7. Concrete Arch. Report [15p.] & Pres. [10'] (A2)

14+8% 18 Mar

9. Arch. Enhancement (A3) - talk with your TA

week of 21 Mar

11. Arch. Enhancement Report [15p.] & Pres. [10'] (A3)

14+8% 8 Apr

Source: Week 1 Lecture Slides and Syllabus, page 30 and 37
